Understanding Drilling Jars: Functionality and Applications

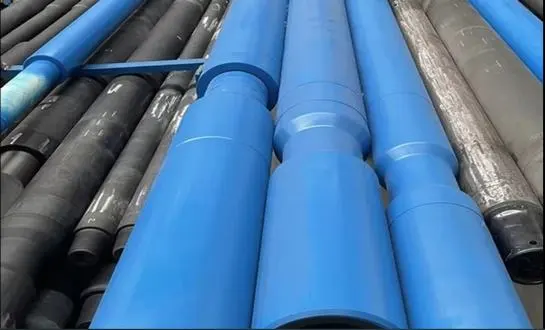

Types of Drilling Jars
Drilling jars come in various types, each designed for specific drilling conditions and requirements. The three main categories are mechanical jars, hydraulic jars, and hydro-mechanical jars. Mechanical jars operate on a simple spring-loaded mechanism, providing quick and powerful blows. Hydraulic jars, on the other hand, use fluid resistance to build up energy before releasing it in a controlled manner. Hydro-mechanical jars combine elements of both, offering versatility in different drilling environments.
How Drilling Jars Work
The operation of a drilling jar involves a complex interplay of mechanical components. When activated, the jar builds up tension or compression in the drill string. Upon reaching a predetermined threshold, it releases this energy in a sudden, powerful impact. This impact is transmitted through the drill string, potentially freeing it from stuck conditions or overcoming other obstacles encountered during drilling operations.
Benefits and Limitations of Drilling Jars
Drilling jars offer several advantages, including their ability to free stuck drill strings, overcome tight spots in the wellbore, and provide a means of controlled force application downhole. They can significantly reduce non-productive time and associated costs in challenging drilling situations. However, jars also have limitations, such as the potential for damage to other downhole components if used improperly, and the need for skilled operators to maximize their effectiveness.
Shock Subs: Vibration Management in Drilling Operations
Shock Sub Design and Functionality
Shock subs are engineered to absorb and dissipate vibrations generated during drilling operations. They typically consist of a series of elastomeric elements or mechanical springs housed within a robust outer casing. These components work together to dampen axial, lateral, and torsional vibrations, effectively isolating the sensitive measurement-while-drilling (MWD) and logging-while-drilling (LWD) tools from harmful shocks.
Impact on Drilling Performance
The implementation of shock subs can lead to significant improvements in drilling performance. By reducing vibrations, they help extend the life of drill bits, stabilize the bottomhole assembly, and enhance the accuracy of downhole measurements. This results in smoother drilling operations, increased rate of penetration (ROP), and potentially lower overall drilling costs.
Considerations for Shock Sub Selection
Choosing the right shock sub involves considering factors such as the expected vibration levels, formation characteristics, and the specific tools in the drilling assembly. Engineers must balance the need for vibration dampening with the potential impact on weight transfer to the bit and overall system stiffness. Advanced modeling and analysis tools can aid in optimizing shock sub selection for specific drilling conditions.
Comparative Analysis: Drilling Jar vs. Shock Sub
Operational Scenarios
While both drilling jars and shock subs play critical roles in drilling operations, they address different challenges. Drilling jars are primarily used in situations where there's a risk of the drill string becoming stuck or when additional force is needed to overcome formation resistance. Shock subs, conversely, are employed to manage continuous vibrations throughout the drilling process, protecting equipment and improving overall drilling efficiency.
Integration in Drilling Assemblies
The strategic placement of drilling jars and shock subs within the bottomhole assembly (BHA) is essential for optimizing their performance. Jars are typically positioned above the drill collars, allowing them to deliver maximum impact force when needed to break through obstacles. Shock subs, on the other hand, are carefully placed just above sensitive tools like MWD/LWD instruments to protect them from damaging vibrations. In some cases, both tools may be integrated into the same BHA, working together to tackle various drilling challenges, such as improving efficiency and reducing tool wear, ensuring smoother and more effective drilling operations.
Cost-Benefit Analysis
When evaluating the use of drilling jars versus shock subs, operators must consider the initial investment, potential operational benefits, and long-term cost savings. While drilling jars may have a higher upfront cost, their ability to free stuck equipment can result in substantial savings by preventing expensive fishing operations or sidetracking. Shock subs, though less dramatic in their immediate impact, can lead to significant cost reductions through improved tool life, increased ROP, and reduced downtime due to vibration-related failures.
In conclusion, the choice between a drilling jar and a shock sub depends on the specific challenges and objectives of your drilling operation. While drilling jars excel in overcoming stuck pipe situations and providing controlled force application, shock subs are invaluable for managing vibrations and protecting sensitive downhole equipment. Many successful drilling operations incorporate both tools to maximize efficiency and minimize risks. For expert guidance on selecting the right downhole tools for your drilling needs, including high-quality drilling jars and shock subs, contact our team at oiltools15@welongpost.com. Our specialists are ready to help you optimize your drilling operations with tailored solutions.
