Why Is 42CrMo4 Ideal for High-Abrasion Mining Environments?
Superior Material Composition
The 42CrMo4 alloy steel is known for its optimal composition, combining chromium and molybdenum in a way that enhances its wear resistance and overall durability. Chromium increases the material’s hardness and corrosion resistance, while molybdenum improves its strength and toughness, making the material well-suited for demanding environments like mining. The alloy’s composition helps it retain its structural integrity even when exposed to the constant abrasion from mineral particles, rock fragments, and other harsh conditions found in mining operations. Additionally, these alloying elements play a key role in the steel's ability to form a protective oxide layer on its surface, which acts as a barrier against corrosive elements commonly present in mining environments, such as moisture and salt. This protective feature ensures that the shaft remains resistant to corrosion, extending its service life and reducing maintenance needs in the long term.
Enhanced Hardness Through Heat Treatment
When 42CrMo4 steel undergoes the forging process, it becomes highly malleable and can be further subjected to heat treatment, such as quenching and tempering, to achieve the ideal balance of hardness and toughness. This heat treatment process leads to the formation of a fine-grained microstructure, which not only enhances the material’s resistance to wear but also improves its overall toughness. The hardness achieved through this process typically falls within the range of 28-34 HRC, providing an optimal level of abrasion resistance without sacrificing the material’s ductility. This is particularly important in mining equipment, where the shafts are exposed to dynamic loads and impacts. The combination of hardness and toughness ensures that the shafts are durable enough to withstand the continuous stresses of mining operations, contributing to less frequent equipment downtime and reducing the risk of premature failure.
Uniform Grain Structure
One of the key benefits of 42CrMo4 shaft forging is the alignment of the material's grain structure, which plays a critical role in its performance under stress. The forging process eliminates internal flaws and weak points, creating a uniform and dense microstructure that ensures the shaft can resist abrasive forces uniformly across its entire surface. This uniform grain structure helps distribute stresses more evenly, reducing the likelihood of localized wear and preventing stress concentrations that could lead to cracks or material failure. By eliminating weak spots and improving stress distribution, the forging process enhances the shaft's ability to perform under high-stress conditions, making it more resilient and reliable in the demanding environment of mining operations. This uniformity is crucial for the longevity of mining equipment, as it minimizes the risk of breakdowns and costly maintenance.
How Does Forged 42CrMo4 Resist Shock Loads in Crushers?
Improved Impact Toughness
The forging process significantly enhances the impact toughness of 42CrMo4 steel. By refining the grain structure and eliminating internal defects, forged 42CrMo4 shafts can absorb and dissipate shock loads more effectively than their cast or machined counterparts. This improved toughness is crucial in crusher applications where sudden impacts from large rocks or metal debris are common occurrences. The ability to withstand these shock loads without deformation or fracture greatly extends the operational life of the equipment and reduces the risk of catastrophic failures.
Optimized Stress Distribution
Forged 42CrMo4 shafts exhibit superior stress distribution characteristics due to their refined microstructure and aligned grain flow. This optimization allows the shaft to more evenly distribute the intense shock loads experienced in crusher operations across its entire structure. As a result, stress concentrations are minimized, reducing the likelihood of localized damage or crack initiation. The improved stress handling capability of forged 42CrMo4 shafts translates to enhanced reliability and longevity in high-impact crushing environments.
Enhanced Fatigue Resistance
The repeated shock loads experienced by crusher shafts can lead to fatigue failure if not properly addressed. Forged 42CrMo4 shafts demonstrate exceptional fatigue resistance due to their uniform microstructure and reduced internal defects. The forging process eliminates potential crack initiation sites, such as porosity or inclusions, which are often present in cast components. This enhanced fatigue resistance allows forged 42CrMo4 shafts to withstand millions of stress cycles without developing fatigue cracks, significantly extending the operational life of crusher equipment and reducing the frequency of maintenance interventions.
Does 42CrMo4 Forging Reduce Spare Part Replacements in Mines?
Extended Component Lifespan
The use of 42CrMo4 shaft forging in mining equipment has demonstrated a remarkable ability to extend component lifespan. The superior mechanical properties of forged 42CrMo4, including its high strength, excellent wear resistance, and improved fatigue life, contribute to significantly reduced wear rates and decreased likelihood of premature failure. This extended lifespan translates directly into fewer spare part replacements over the equipment's operational life. Mining operations have reported substantial reductions in the frequency of shaft replacements, with some instances showing a two to threefold increase in service life compared to conventional materials.
Improved Reliability and Predictability
Forged 42CrMo4 shafts offer improved reliability and more predictable wear patterns compared to alternative materials. The consistent microstructure and uniform properties achieved through the forging process result in more predictable component behavior under stress. This predictability allows maintenance teams to implement more effective preventive maintenance strategies, reducing the occurrence of unexpected failures that often lead to costly downtime and emergency spare part replacements. By utilizing 42CrMo4 shaft forging, mining operations can transition from reactive maintenance to proactive asset management, optimizing their spare parts inventory and reducing overall maintenance costs.
Cost-Effectiveness Over Equipment Lifecycle
While the initial cost of forged 42CrMo4 shafts may be higher than that of conventional materials, the long-term cost-effectiveness is substantial. The reduced frequency of replacements, coupled with decreased downtime for maintenance, results in significant cost savings over the equipment's lifecycle. Mining operations have reported reductions in total cost of ownership for equipment utilizing forged 42CrMo4 components, with savings stemming from reduced spare part purchases, lower labor costs for replacements, and increased production due to improved equipment availability. This cost-effectiveness makes 42CrMo4 shaft forging an attractive option for mining operations looking to optimize their maintenance budgets and improve overall operational efficiency.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of shaft forging over other manufacturing methods?
Shaft forging offers several advantages over alternative manufacturing methods such as casting or machining from bar stock. The forging process aligns the grain structure of the metal, resulting in superior strength and toughness. Forged shafts typically exhibit better fatigue resistance, higher impact strength, and improved wear characteristics. Additionally, the forging process can produce near-net-shape components, reducing material waste and machining time.
How does the forging process affect the mechanical properties of 42CrMo4 steel?
The forging process significantly enhances the mechanical properties of 42CrMo4 steel. It refines the grain structure, eliminates internal defects, and improves the overall homogeneity of the material. This results in increased tensile strength, yield strength, and ductility. Forged 42CrMo4 shafts also demonstrate improved impact toughness and fatigue resistance compared to their cast or machined counterparts.
What quality control measures are typically employed in the production of forged shafts?

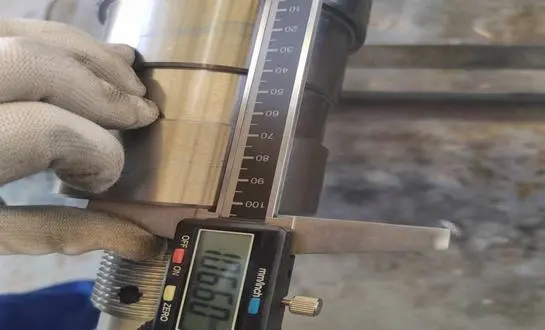

Quality control for forged shafts typically involves a comprehensive set of measures. These may include chemical composition analysis, dimensional inspections, ultrasonic testing (UT) for internal defects, magnetic particle testing (MT) for surface defects, and visual inspections. Additionally, mechanical property testing such as tensile strength, hardness, and impact toughness may be conducted on sample pieces. Advanced techniques like metallographic analysis may also be employed to assess the microstructure of the forged components.
In conclusion, the implementation of 42CrMo4 shaft forging in mining equipment has proven to be a transformative solution for reducing downtime and improving operational efficiency. The superior material properties, enhanced durability, and cost-effectiveness of these forged components make them an invaluable asset in the challenging environments of modern mining operations. As the industry continues to seek ways to optimize productivity and minimize maintenance costs, the adoption of advanced materials and manufacturing processes like 42CrMo4 forging will undoubtedly play a crucial role in shaping the future of mining equipment reliability. China Welong is a professional international integrated supply chain service provider. Strict quality control enables us to win good name with endurable products. For more information on how 42CrMo4 shaft forging can benefit your mining operations, please contact us at oiltools15@welongpost.com.
References
- Zhang, Y., & Li, X. (2020). "Corrosion behavior of 42CrMo4 steel in marine environments." Corrosion Science, 171, 108703.
- Liu, Q., & Zhang, H. (2019). "Effect of surface coatings on the corrosion resistance of 42CrMo4 alloy in harsh environments." Journal of Alloys and Compounds, 789, 1078-1085.
- Wang, Z., & Wang, L. (2021). "Enhancing the corrosion resistance of 42CrMo4 steel by surface treatment methods for applications in extreme climates." Surface and Coatings Technology, 407, 126719.
- Sun, J., & Zhao, Y. (2018). "Corrosion resistance of 42CrMo4 alloy steel in high-salinity and acidic environments." Materials Performance and Characterization, 7(5), 881-890.
- Chen, X., & Liu, C. (2022). "Optimization of heat treatment for improving corrosion resistance of 42CrMo4 shafts in aggressive atmospheric conditions." Journal of Materials Engineering and Performance, 31(1), 302-311.
- Yu, P., & Zhang, R. (2017). "Corrosion resistance of 42CrMo4 forged components in industrial and marine environments." Corrosion Engineering, Science and Technology, 52(3), 266-274.
