What Are the Key Steps in Closed-Die Shaft Forging?
Precision Die Design for Optimal Material Flow
The journey of closed-die shaft forging begins with meticulous die design. Engineers utilize advanced computer-aided design (CAD) software to create precise molds that will shape the metal into the desired form. These dies are crafted to ensure optimal material flow during the forging process, which is crucial for achieving the desired mechanical properties and minimizing defects. The design considers factors such as grain flow, stress distribution, and the final shape of the shaft, incorporating features like draft angles and flash gutters to facilitate the forging process.
Controlled Heating and Material Preparation
Before the forging process can begin, the raw material, typically a steel billet or bar, undergoes careful heating. This step is critical as it brings the metal to its optimal forging temperature, which varies depending on the alloy composition. Precise temperature control is essential to ensure the metal is malleable enough to flow into the die cavities without compromising its structural integrity. Advanced furnaces with zone control capabilities are often employed to achieve uniform heating throughout the workpiece, preventing issues such as thermal gradients that could lead to inconsistencies in the final product.
Multi-Stage Forging and Precision Finishing
Closed-die shaft forging typically involves multiple stages to gradually form the metal into its final shape. The process begins with initial shaping, where the heated billet is pressed into a rough form. Subsequent dies refine the shape further, with each stage bringing the workpiece closer to its final dimensions. The final forging stage often incorporates precision features such as gear teeth or splines. After forging, the shaft undergoes controlled cooling to achieve the desired microstructure. Post-forging operations may include heat treatment, machining, and surface finishing to meet exact specifications and ensure the shaft meets or exceeds performance requirements.

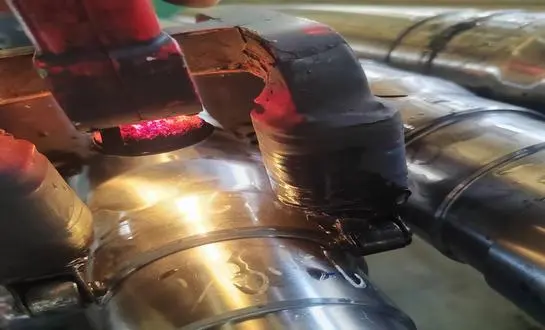

How Does Open-Die Forging Enhance Metal Integrity?
Grain Flow Optimization for Superior Strength
Open-die forging is renowned for its ability to enhance metal integrity through the optimization of grain flow. Unlike closed-die forging, which constrains the metal within a cavity, open-die forging allows for greater control over the deformation process. This method involves repeatedly pressing and manipulating the heated metal between flat or simply shaped dies. As the metal is worked, its internal grain structure is refined and aligned in a way that follows the contours of the final shape. This alignment of the grain flow results in a shaft with superior strength and ductility compared to those produced by other manufacturing methods.
Homogenization of Material Properties
Another significant advantage of open-die forging is its ability to homogenize material properties throughout the shaft. The repeated deformation and working of the metal helps to break down and distribute any inclusions or inconsistencies in the original billet. This process effectively eliminates voids and ensures a uniform distribution of alloying elements throughout the workpiece. The result is a shaft with consistent mechanical properties from core to surface, reducing the risk of localized weak points that could lead to premature failure under stress.
Versatility in Size and Shape
Open-die forging offers unparalleled versatility in terms of the size and shape of shafts that can be produced. This technique is particularly valuable for creating large or uniquely shaped shafts that would be impractical or impossible to manufacture using closed-die methods. The open nature of the process allows for the production of shafts with varying cross-sections, tapers, and even hollow sections. This flexibility enables engineers to design shafts that are optimized for their specific application, with material distributed precisely where it's needed most to handle operational loads and stresses.
What Forging Techniques Improve Shaft Fatigue Resistance?
Controlled Grain Refinement
One of the most effective techniques for improving shaft fatigue resistance is controlled grain refinement during the forging process. By carefully managing the temperature and deformation parameters, metallurgists can achieve a fine-grained microstructure throughout the shaft. This refined grain structure significantly enhances the material's resistance to crack initiation and propagation, which are primary factors in fatigue failure. The process often involves multiple forging steps with intermediate reheating, allowing for progressive refinement of the grain structure. The resulting shaft exhibits superior fatigue strength, capable of withstanding cyclic loading conditions for extended periods without failure.
Stress Relief and Microstructure Optimization
Post-forging heat treatment plays a crucial role in optimizing the shaft's microstructure for improved fatigue resistance. Stress relief annealing is commonly employed to reduce internal stresses that may have accumulated during the forging process. This treatment helps to prevent premature fatigue failure by eliminating stress concentrations that could serve as initiation points for cracks. Additionally, techniques such as normalizing or quenching and tempering can be used to further refine the microstructure, balancing hardness and ductility to achieve the optimal combination of strength and toughness required for fatigue resistance.
Surface Enhancement Techniques
The surface condition of a forged shaft significantly influences its fatigue performance. Various surface enhancement techniques can be applied to improve fatigue resistance. Shot peening, for example, introduces compressive stresses in the surface layer of the shaft, effectively counteracting the tensile stresses that typically lead to fatigue crack initiation. Other methods include roll burnishing and laser shock peening, which can create a hardened surface layer with improved wear resistance and fatigue properties. These surface treatments not only enhance the shaft's resistance to fatigue but also improve its overall durability and performance in demanding applications.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What materials are commonly used in shaft forging?
Shaft forging typically utilizes various grades of steel, including carbon steels, alloy steels, and stainless steels. The choice of material depends on the specific application requirements, such as strength, corrosion resistance, and operating environment. Common materials include AISI 4140, 4340, and 316L stainless steel. Each material offers unique properties that can be further enhanced through the forging process and subsequent heat treatments.
How does forging compare to other shaft manufacturing methods?
Forging offers several advantages over other manufacturing methods like casting or machining. Forged shafts generally exhibit superior strength, toughness, and fatigue resistance due to the refinement of grain structure during the forging process. Unlike casting, forging eliminates internal porosity and ensures a more uniform grain structure. Compared to machining from solid stock, forging can be more cost-effective for high-volume production and results in less material waste. However, the choice between methods often depends on factors such as production volume, dimensional requirements, and material properties needed for the specific application.
What quality control measures are essential in shaft forging?

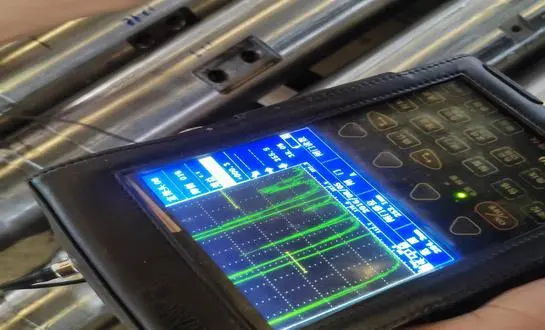

Quality control in shaft forging involves multiple stages of inspection and testing. Key measures include: - Metallurgical testing to verify material composition and microstructure - Non-destructive testing (NDT) methods such as ultrasonic and magnetic particle inspection to detect any internal or surface defects - Dimensional checks to ensure compliance with specifications - Mechanical testing, including tensile strength, hardness, and impact resistance evaluations - Heat treatment verification to confirm proper microstructure development These measures ensure that forged shafts meet the stringent quality standards required for critical applications in various industries.
In conclusion, shaft forging techniques play a pivotal role in optimizing metal strength for machinery across various industries. From the precision of closed-die forging to the versatility of open-die methods, and the implementation of advanced fatigue resistance techniques, the field of shaft forging continues to evolve. These advancements enable the production of high-performance components that meet the ever-increasing demands of modern machinery. As technology progresses, we can expect further innovations in forging processes, materials, and quality control methods, leading to even more robust and efficient shaft designs. For those seeking to leverage these cutting-edge shaft forging techniques or explore customized solutions for their specific needs, don't hesitate to reach out to the experts at oiltools15@welongpost.com. Welong stands ready to assist with your shaft forging requirements, ensuring you receive components that are optimized for strength, durability, and performance.
