How Does a Power Tong Work?
Mechanical Operation

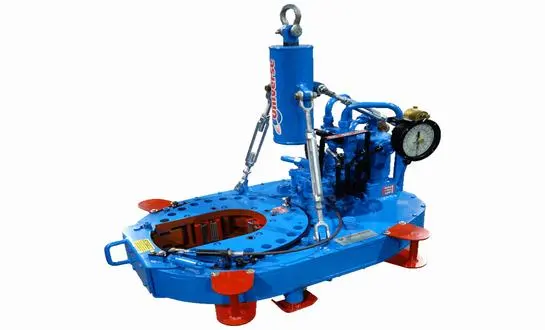

The mechanical operation of a power tong is fundamental to its function, combining several components that work together to provide efficient and precise control. At its core, the system consists of gears, hydraulic motors, and gripping jaws. The hydraulic motor is activated to drive the main gear of the tong, which then rotates and moves the gripping jaws. These jaws are specifically designed to securely hold the pipe or tubular component, ensuring that it remains in place during operations. Once the jaws grip the pipe, the tong applies rotational force, allowing for the necessary tightening or loosening of connections. This mechanical process is what enables power tongs to perform essential tasks on drilling rigs, particularly for making or breaking connections with speed and accuracy.
Torque Application
A distinguishing feature of power tongs is their ability to apply controlled and adjustable torque. The hydraulic system within the tong allows operators to fine-tune the torque applied, ensuring that each connection is tightened to the precise specifications required for optimal performance. This level of control is critical for maintaining the integrity of threaded connections, which are essential to prevent leaks or failures during drilling operations. By adjusting the torque, power tongs help protect expensive equipment from being damaged due to excessive force, which can cause wear or breakage of the pipe threads. The precise application of torque also ensures that the connections are reliable and secure, providing a safe and effective drilling environment.
Safety Mechanisms
Modern drill pipe power tongs incorporate various safety features to protect both the equipment and the operators. These may include torque limiters to prevent over-tightening, emergency stop buttons, and safety interlocks that prevent operation unless all safety guards are in place. Additionally, some advanced models feature remote operation capabilities, allowing workers to control the tong from a safe distance, further enhancing workplace safety.
How Do Power Tongs Improve Drilling Efficiency?
Increased Speed and Precision
Power tongs play a crucial role in speeding up the process of connecting and disconnecting drill pipes on a rig. Unlike manual methods, where workers must physically handle the pipes, power tongs automate the process, allowing for quicker and more efficient pipe handling. The automation not only reduces the time required to make connections but also ensures that each connection is completed to precise torque specifications every time. This consistency greatly reduces the risk of connection failures, which could otherwise result in costly downtime and potential damage to equipment. As a result, operations can proceed with minimal interruptions, contributing to enhanced overall productivity.
Reduced Physical Strain
One of the significant advantages of using power tongs is the reduction in physical strain placed on rig workers. Traditionally, connecting and disconnecting drill pipes is a physically demanding task that can lead to fatigue, discomfort, and even injury. By automating this process, power tongs reduce the need for manual labor, easing the physical demands on workers. This not only enhances safety by minimizing the risk of workplace injuries but also allows crew members to focus on other critical tasks. The reduced physical strain helps improve overall operational efficiency, as workers can perform their duties more effectively without the burden of strenuous labor.
Enhanced Data Collection
In addition to improving speed and reducing strain, modern power tongs offer the benefit of advanced data collection. Many of today’s power tongs come equipped with sensors and data logging systems that track vital parameters such as torque values, turn counts, and more. This real-time data can be monitored and recorded throughout the makeup process, providing valuable insights into the quality of each connection. Having access to this data allows for better quality control, enabling operators to quickly identify any issues that may arise. Furthermore, this information can be used to optimize future drilling operations, ensuring higher efficiency and reducing the potential for costly mistakes or equipment failures.
What are the Different Types of Tongs in Drilling Rigs?
Manual Tongs
Although they are less commonly used on modern drilling rigs, manual tongs still play a role in certain situations. These tongs are large, non-motorized wrenches that require significant physical effort from workers to operate. Typically, manual tongs are employed when working with smaller diameter pipes, where the torque requirements are not as high or when power tongs are either unavailable or impractical. They are also considered a backup tool and are kept on rigs for emergency situations or when working in remote locations where more advanced equipment might not be readily accessible. Despite their labor-intensive operation, manual tongs can still be effective for specific tasks, particularly when power options are not feasible.
Hydraulic Power Tongs
Hydraulic power tongs have become the standard tool on modern drilling rigs, thanks to their efficiency and capability. These tongs use hydraulic pressure to generate the necessary torque for connecting and disconnecting drill pipes, making them a much more powerful option compared to manual tongs. The hydraulic system allows for consistent, high-torque performance across a wide range of pipe sizes, making them versatile for different tasks on the rig. Drill pipe power tongs are a specific subset of hydraulic power tongs, designed for the frequent connections and disconnections required during drill string operations. They are more efficient and require less physical effort from workers, which not only improves safety but also reduces downtime and enhances overall productivity on the rig floor.
Casing Tongs

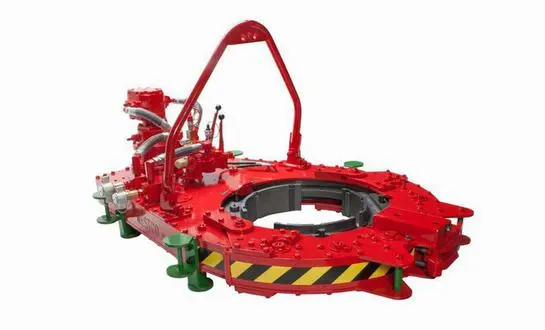

Casing tongs are a specialized type of power tongs, specifically designed for working with larger diameter casing strings. These tongs are built to handle the higher torque requirements that come with making up and breaking out casing connections, which are typically more challenging due to the size and weight of the casing pipes. Casing tongs are often larger and more robust than standard drill pipe tongs, featuring stronger jaws and enhanced construction to withstand the increased demands of casing operations. Their main purpose is to ensure the integrity of the well's casing, which is crucial for maintaining well stability and isolating formation fluids. Properly connected casing helps to protect the well from external pressures and environmental factors, making casing tongs essential tools in drilling operations that require the installation of casing strings.
Source: Narimanoglu
FAQ
What is the typical torque range for a power tong?
The torque range for power tongs can vary significantly depending on the specific model and intended application. Smaller power tongs used for drill pipe might have a torque range of 5,000 to 25,000 ft-lbs, while larger models designed for casing can generate torques up to 100,000 ft-lbs or more.
How often should power tongs be serviced?
Regular maintenance is crucial for the safe and efficient operation of power tongs. While specific service intervals may vary based on usage and manufacturer recommendations, most power tongs should undergo a thorough inspection and service at least annually. Additionally, daily visual inspections and periodic operational checks are essential to identify any potential issues early.
Can power tongs be used for both makeup and breakout operations?
Yes, most modern power tongs are designed to perform both makeup and breakout operations. They typically feature reversible rotation capabilities, allowing them to apply torque in both clockwise and counterclockwise directions. This versatility makes them invaluable tools for all stages of drilling and workover operations.
In conclusion, power tongs are indispensable tools in modern drilling operations, offering significant improvements in efficiency, safety, and precision. Their ability to consistently apply precise torque to tubular connections ensures the integrity of the drill string and well structure. As the oil and gas industry continues to evolve, the role of power tongs in enhancing drilling operations remains crucial. China Welong is a professional international oilfield products and customized products provider. For more information about power tongs and other oilfield products, please contact us at oiltools15@welongpost.com.
