Annular Blowout Preventer (Annular BOP) for Well Control System

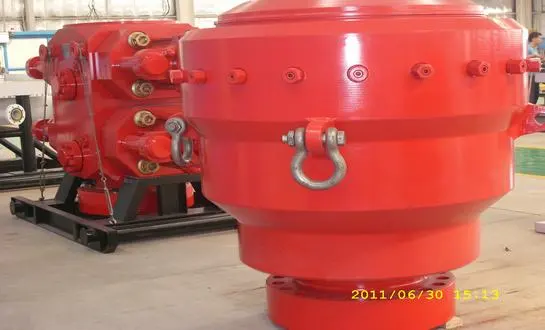

An Annular Blowout Preventer (Annular BOP) is a critical component in well control systems, designed to prevent catastrophic blowouts during oil and gas drilling operations. This sophisticated piece of equipment forms an integral part of the blowout preventer stack, serving as the first line of defense against uncontrolled releases of formation fluids. The Annular BOP's primary function is to seal the annular space between the drill pipe and the wellbore, effectively containing high-pressure fluids and gases that may unexpectedly surge up from the well. Its unique design, featuring a donut-shaped rubber sealing element, allows it to close around various sizes of drill pipe, tubing, or even an open hole, providing versatile and reliable well control capabilities. In the challenging and high-stakes environment of offshore and onshore drilling, the Annular BOP plays a crucial role in maintaining safety, protecting the environment, and preserving valuable resources.

What is the function of an Annular Blowout Preventer

Primary Sealing Mechanism

The Annular Blowout Preventer (Annular BOP) is a critical safety device in drilling operations, designed primarily to create a dependable seal around the drill string, casing, or even an open wellbore. The sealing action is achieved by compressing a resilient rubber element that is capable of conforming to the shape and size of whatever is passing through it. This could be a drill pipe, tool joint, or, in certain situations, an entirely open hole. The flexibility of the rubber element ensures that the Annular BOP can seal effectively across a wide range of pipe sizes, tool configurations, and wellbore conditions. Its versatility is one of the reasons the Annular BOP is an essential component in well control. By maintaining a reliable seal, it prevents the uncontrolled escape of high-pressure fluids from the well, which could lead to dangerous blowouts or other severe operational hazards.

Pressure Containment

A critical function of the Annular BOP is its ability to withstand and contain extremely high pressures that can occur during drilling operations. During drilling, the wellbore is subjected to fluctuating pressure conditions, and unexpected pressure increases, often referred to as kicks, can occur. The Annular BOP helps prevent these pressure surges from escalating by providing a tight seal that contains the well pressure and isolates the formation. The ability of the Annular BOP to manage these high-pressure situations is vital for ensuring the integrity of the wellbore. It prevents the risk of blowouts, which could cause catastrophic damage to both the well and the rig, and more importantly, protect the safety of personnel working on the site. Without the pressure containment provided by the Annular BOP, the risk of an uncontrolled release of gas or fluids is greatly heightened.

Emergency Well Shut-In

In the event of a sudden influx of formation fluids or gases—commonly known as a kick—the Annular BOP can be deployed to quickly shut in the well and stop the flow of these potentially dangerous materials. Kicks can escalate rapidly if not addressed immediately, and if left uncontrolled, they can develop into full-blown blowouts. The Annular BOP plays a vital role in controlling these emergency situations by providing a fast and effective means of sealing the wellbore. Its ability to respond rapidly to changes in well conditions makes it an invaluable tool for well control. In high-risk scenarios, where time is of the essence, the Annular BOP ensures that well pressures are controlled, preventing the dangerous escalation of a kick. This rapid shut-in capability is essential for safeguarding both the wellbore and the personnel on the rig.

What are the main parts of an annular Annular Blowout Preventer

Rubber Sealing Element

At the core of the Annular Blowout Preventer (BOP) is the rubber sealing element, also known as the packing unit or packing element. This crucial component is typically shaped like a donut and made from a specially formulated elastomer. The rubber is engineered to withstand extreme pressures and high temperatures commonly encountered during drilling operations. When activated, the rubber element undergoes a deformation process, adapting to the shape of the drill pipe, casing, or open wellbore. This creates an airtight seal that prevents fluid or gas from escaping. The elastomer’s design is such that it can maintain its sealing capabilities even under high-frequency use and varying well conditions. The resilience of the rubber material is key, as it ensures that the BOP can continue to function effectively over multiple cycles of operation, providing reliable protection during critical moments when blowout risks are high.

​​​​​​​

Hydraulic Piston Assembly

The hydraulic piston assembly plays an essential role in the function of the Annular BOP by applying the force necessary to compress the rubber sealing element. This assembly consists of a large piston that moves vertically within the BOP body. When hydraulic pressure is applied, the piston is forced upwards, pushing the rubber element into position and causing it to tightly conform around the drill pipe or wellbore. The hydraulic system is designed to be highly responsive, enabling the BOP to be activated swiftly in emergency situations. The rapid and precise compression of the sealing element ensures that the well is quickly secured, effectively preventing any uncontrolled fluid or gas flow from the well. This speed and accuracy in sealing are critical, especially when dealing with the volatile conditions that may arise during drilling operations.

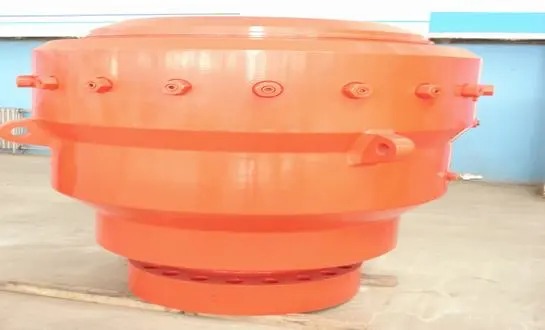

BOP Body and Housing

The BOP body and housing are the structural backbone of the Annular Blowout Preventer, providing both support and protection for its internal components. Constructed from high-strength steel or other durable materials, the BOP body is built to withstand the immense pressures and mechanical stresses that occur during drilling. This robust structure houses the rubber sealing element and hydraulic piston assembly, ensuring that they function efficiently under extreme conditions. The body also includes multiple connection points, allowing the BOP to be integrated seamlessly into the blowout preventer stack, which is a critical part of the overall well control system. These housing components are designed for maximum durability, ensuring the BOP can endure the harsh environment of a drilling site without compromising its integrity or performance. By maintaining its strength and stability, the BOP body plays an important role in ensuring the safety and reliability of the well control system throughout the drilling process.

Can you strip pipe with an annular BOP

Pipe Stripping Capabilities

Yes, one of the significant advantages of an Annular Blowout Preventer is its ability to strip pipe. Pipe stripping refers to the process of moving drill pipe or tubing in or out of the wellbore while maintaining pressure control. The flexible nature of the Annular BOP's rubber sealing element allows it to maintain a seal around the pipe even as it moves. This capability is crucial for various operations, such as tripping pipe in and out of the hole or running wireline tools, without compromising well control.

Pressure Control During Stripping

During pipe stripping operations, the Annular BOP can be partially closed to create a controlled seal around the moving pipe. This partial closure allows for the maintenance of back pressure on the well while still permitting the pipe to move. The ability to precisely control the closing pressure of the Annular BOP is essential for balancing the need for pressure containment with the requirement to allow pipe movement without causing damage.

Limitations and Considerations

While Annular BOPs are well-suited for pipe stripping operations, it's important to note that there are limitations to this capability. The stripping process can cause wear on the rubber sealing element, potentially reducing its effectiveness over time. Additionally, the pressure differential and pipe movement speed must be carefully controlled to prevent damage to the BOP or the pipe itself. Proper training and adherence to operational guidelines are crucial for safely and effectively utilizing an Annular BOP for pipe stripping operations.

Source: 老白的频道 Lao Bai

FAQ about Annular Blowout Preventers

What is the typical pressure rating of an Annular BOP?

Annular Blowout Preventers are available in a range of pressure ratings to suit various drilling environments. Common pressure ratings include 5,000 psi, 10,000 psi, and 15,000 psi. However, some specialized Annular BOPs can be rated for even higher pressures, up to 20,000 psi or more. The selection of an appropriate pressure rating depends on the expected well conditions and regulatory requirements for the specific drilling operation.

How often should an Annular BOP be tested?

The frequency of Annular Blowout Preventer testing is typically governed by industry standards and regulatory requirements. In many jurisdictions, Annular BOPs are required to be function tested at least once every week during active drilling operations. Pressure tests are often required every two weeks or after any repair or maintenance work. However, specific testing schedules may vary depending on local regulations, company policies, and the particular risks associated with the drilling project.

What is the difference between an Annular BOP and a Ram BOP?

While both Annular BOPs and Ram BOPs are essential components of a well control system, they differ in design and functionality. An Annular BOP uses a circular rubber element to create a seal around various pipe sizes or an open hole. In contrast, a Ram BOP uses two opposing steel blocks (rams) to seal off the wellbore. Ram BOPs are typically more effective at sealing against high pressures but are less versatile in terms of the pipe sizes they can accommodate. Annular BOPs offer greater flexibility but may have lower pressure ratings compared to Ram BOPs.

In conclusion, the Annular Blowout Preventer is a vital component in well control systems, providing essential pressure containment and safety features for drilling operations. Its versatile sealing capabilities, combined with its ability to allow for pipe stripping, make it an indispensable tool in the oil and gas industry. As technology continues to advance, we can expect further improvements in Annular BOP design and performance, enhancing well control capabilities and safety standards across the industry. Established in 2001, China Welong is a seasoned global provider of integrated supply chain services. Strict quality control helps us build a solid reputation with durable products. For more information about Annular Blowout Preventers and other well control equipment, please don't hesitate to contact us at oiltools15@welongpost.com.
