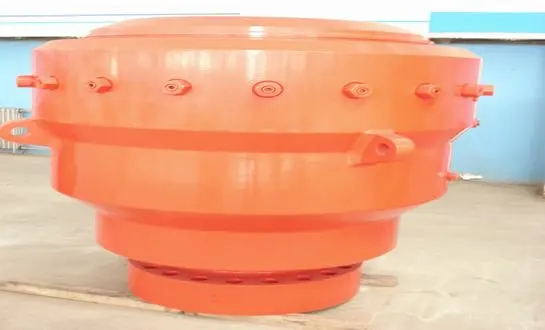

What is an Annular Blowout Preventer and How Does It Work
Definition and Purpose
An Annular Blowout Preventer (ABP) is a critical piece of well control equipment used to prevent the uncontrolled release of formation fluids during drilling operations. Its primary purpose is to form a reliable seal around the drill pipe, casing, or any other tubular components in the wellbore, ensuring that any pressure from the formation is safely contained. Unlike other blowout preventers that utilize ram-type sealing mechanisms, ABPs employ a unique, flexible, circular rubber sealing element that can adjust to the size and shape of the pipe. This versatility allows ABPs to handle various tubular configurations, making them highly adaptable for a wide range of drilling conditions.
The ability to form a seal around different pipe diameters or even a completely open hole is one of the distinguishing features of ABPs, providing a crucial safety measure to prevent blowouts. Their design is particularly effective in situations where a precise, tight seal is required, ensuring that pressure is controlled and safely managed.
Components and Mechanism
The key components of an ABP include:
- Rubber sealing element (packing unit)
- Steel housing
- Hydraulic piston assembly
- Operating system
When the ABP is activated, hydraulic pressure is directed to the piston assembly, causing it to move upward. This upward motion compresses the rubber sealing element, which deforms inward to create a tight seal around the drill pipe or open wellbore. The flexibility and elasticity of the rubber sealing element allow it to conform to various sizes and shapes of pipe, offering a secure and adaptable seal. The steel housing provides structural integrity, while the hydraulic piston assembly enables controlled compression of the rubber element.
Operational Principles
The ABP operates based on controlled deformation of the rubber sealing element, which is designed to endure high-pressure conditions while maintaining its sealing function. The closing force applied to the rubber is carefully calibrated to ensure an effective seal without causing damage to the drill pipe or other tubular components. Unlike some other types of well control equipment, ABPs can be opened and closed repeatedly during drilling operations. This operational flexibility allows tools and equipment to pass through the BOP while maintaining well control, making it an invaluable tool in preventing blowouts during complex drilling activities.
Importance of Annular Blowout Preventers in Well Control
Safety Enhancement
The most significant contribution of Annular Blowout Preventers (ABPs) is their ability to greatly enhance safety during drilling operations. Their main role is to provide a dependable mechanism to seal the wellbore in case of an unexpected pressure surge or kick. In such critical situations, the swift activation of an ABP can quickly stop the uncontrolled flow of formation fluids, protecting the drilling crew from potential harm. Blowouts, which are sudden and uncontrollable releases of pressure, pose significant risks to both the workers on-site and the surrounding environment. The quick response time of an ABP can be the deciding factor in preventing these dangerous occurrences, ensuring that pressure levels are contained in a safe and controlled manner. In high-risk scenarios, the ABP is an essential tool in mitigating the threats posed by such high-pressure events, thus preventing catastrophic outcomes.
Environmental Protection
In addition to its safety advantages, the ABP is a key player in protecting the environment. The global focus on environmental preservation has made it more important than ever for drilling operations to minimize their impact on surrounding ecosystems. ABPs help reduce the risk of harmful spills or gas leaks that could contaminate nearby soil, water, and air. By forming an effective seal, these devices prevent the escape of hydrocarbons and other hazardous fluids from the well, thus ensuring that harmful substances do not spread into the environment. Given the growing concern for protecting natural habitats and maintaining ecosystem health, ABPs have become essential tools in minimizing the environmental footprint of drilling activities. The ability to contain well fluids and gases helps preserve the integrity of surrounding ecosystems, making ABPs a fundamental component of responsible and sustainable drilling practices.
Economic Considerations
From an economic standpoint, ABPs are invaluable for protecting the substantial investments made in drilling operations. The cost of drilling and related infrastructure is extremely high, and any event such as a blowout can lead to significant financial losses. Blowouts often result in damage to expensive equipment, delays in production, and costly environmental cleanup efforts. By preventing blowouts, ABPs safeguard not only the well and equipment but also ensure that drilling operations proceed without costly interruptions. In the long run, the financial benefits of preventing a blowout, including avoiding repair costs, environmental fines, and downtime, far outweigh the initial cost of investing in these devices. Thus, ABPs provide essential protection against unpredictable and potentially devastating financial setbacks in the drilling industry.

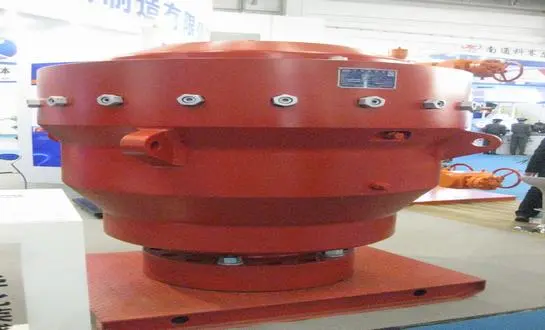

Types of Annular Blowout Preventers Used in the Industry
Standard Annular BOPs
Standard ABPs are the most common type used in the industry. They are designed for moderate pressure applications and can effectively seal around a wide range of pipe sizes. These units are versatile and reliable, making them suitable for many drilling scenarios. Standard ABPs typically have pressure ratings ranging from 2,000 to 5,000 psi and can accommodate pipe sizes from 2 3/8 inches to 9 5/8 inches in diameter.
High-Pressure Annular BOPs
As drilling operations venture into deeper, high-pressure formations, the need for more robust ABPs has led to the development of high-pressure variants. These units are engineered to withstand pressures exceeding 10,000 psi and are critical for ultra-deepwater and high-pressure, high-temperature (HPHT) wells. High-pressure ABPs often incorporate advanced materials and design features to ensure reliability under extreme conditions.
Compact and Specialized ABPs
The industry has also seen the emergence of compact and specialized ABP designs tailored for specific applications. These include:
- Subsea ABPs: Designed for underwater installations, capable of remote operation
- Rotating ABPs: Allow for drill string rotation while maintaining a seal
- Low-profile ABPs: Compact designs for use in areas with height restrictions
These specialized variants demonstrate the ongoing innovation in ABP technology, driven by the evolving needs of the oil and gas industry.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
What is the lifespan of an Annular Blowout Preventer?
The lifespan of an Annular Blowout Preventer can vary depending on factors such as usage frequency, operating conditions, and maintenance practices. With proper care and regular inspections, a high-quality ABP can remain in service for 10-15 years or more. However, critical components like the rubber sealing element may require more frequent replacement, typically every 3-5 years or as recommended by the manufacturer.
How often should Annular Blowout Preventers be tested?
Industry standards and regulatory requirements typically dictate that ABPs should be function tested at least once every 7-14 days during active drilling operations. More comprehensive pressure tests are usually conducted every 14-21 days or after any significant well control event. Additionally, a full inspection and recertification process should be performed annually or as specified by local regulations.
Can Annular Blowout Preventers be used in all drilling environments?
While ABPs are versatile and widely used, certain extreme environments may require specialized equipment. For instance, ultra-high pressure or highly corrosive wellbores might necessitate the use of ram-type BOPs or other custom-engineered solutions. It's crucial to assess the specific well conditions and consult with experts to determine the most appropriate well control equipment for each drilling project.
In conclusion, Annular Blowout Preventers stand as a critical safeguard in the oil and gas industry, providing an essential layer of protection against potentially catastrophic well control events. Their ability to quickly and effectively seal wellbores under various conditions makes them indispensable in modern drilling operations. As the industry continues to push boundaries, exploring deeper and more challenging reservoirs, the role of ABPs in ensuring safety, environmental protection, and operational efficiency becomes increasingly vital. For those seeking to enhance their well control capabilities with top-quality ABPs, we invite you to explore the comprehensive range of solutions offered by China Welong. With our commitment to innovation, quality, and customer satisfaction, we stand ready to support your drilling operations with cutting-edge Annular Blowout Preventer technology. To learn more about our products and how we can assist you, please contact us at oiltools15@welongpost.com.
