How to Identify and Fix Drilling Jar Jamming Issues

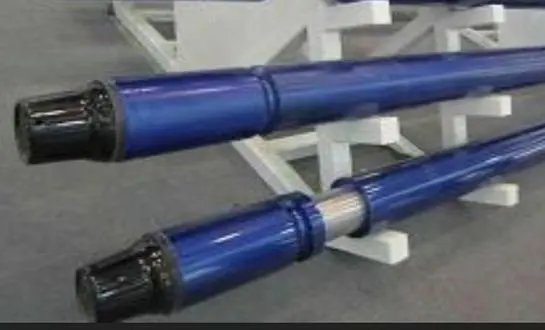

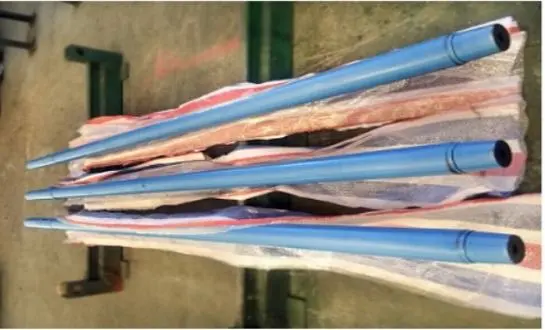

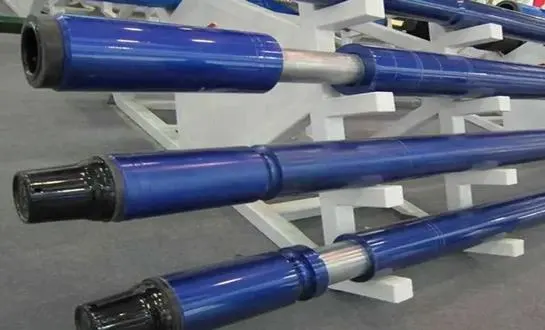

Drilling jars are essential tools in the oil and gas industry, designed to help free stuck pipe or equipment during drilling operations. However, jamming can occasionally occur, preventing the jar from functioning as intended. Identifying the cause of the jamming and addressing the issue promptly is vital to maintaining efficient drilling operations and avoiding costly delays. Here are some common causes of jamming and how to fix them.
1. Improper Tool Settings
One of the most common causes of jamming is improper tool settings. If the jar is set too tight or too loose, it may fail to deliver the necessary force to dislodge stuck equipment. Over-tightening or under-tightening the tool can lead to internal friction or mechanical failure. To fix this issue, ensure that the jar is set to the correct tension according to the manufacturer's specifications. Adjust the tool settings carefully before each operation to ensure it is ready to deliver optimal performance.
2. Obstructions in the Wellbore
Obstructions in the wellbore, such as debris, rocks, or other stuck objects, can cause drilling jars to jam. These obstructions can block the jar’s movement or prevent it from creating the necessary impact. To identify this issue, conduct a thorough inspection of the wellbore, either using a camera or other diagnostic tools. If obstructions are present, they need to be removed using a fishing tool or other equipment before proceeding with the drilling operation.
3. Hydraulic System Malfunctions (for Hydraulic Jars)
For hydraulic jars, issues in the hydraulic system can lead to jamming. This could be caused by problems such as incorrect fluid viscosity, air trapped in the system, or malfunctioning valves. In this case, check the hydraulic fluid levels, and ensure the system is free of air pockets. If necessary, bleed the system to remove any trapped air and replace the fluid if it has become contaminated or is no longer within the recommended viscosity range.
4. Excessive Wear and Tear
Excessive wear and tear on the jar components can also contribute to jamming. If the jar's internal parts, such as springs or pistons, are worn down, they may not function smoothly. To address this issue, inspect the jar thoroughly for signs of wear and replace any damaged or worn-out components. Regular maintenance and replacement of parts can prevent this from becoming a recurring issue.
Solutions for Drilling Jar Issues
Preventive Maintenance
Implementing a robust preventive maintenance program is crucial for addressing and mitigating drilling jar problems before they occur. Regular inspections should be conducted to identify signs of wear, damage, or potential failure points. This includes visual examinations of external surfaces, checking for fluid leaks, and assessing the condition of seals and O-rings. Advanced inspection techniques, such as ultrasonic testing or magnetic particle inspection, can be employed to detect internal flaws or cracks that may not be visible to the naked eye.
Scheduled maintenance activities should include the replacement of wear-prone components, such as seals, bearings, and springs, based on their expected service life or observed condition. Proper lubrication of moving parts is essential for reducing friction and preventing premature wear. Additionally, maintaining accurate records of jar usage, including the number of jarring cycles and exposure to extreme conditions, can help in predicting when maintenance or replacement may be necessary.
Operational Optimization
Optimizing operational practices is key to maximizing the effectiveness of drilling jars and minimizing the risk of problems. This begins with proper jar selection based on the specific well conditions, including depth, temperature, and anticipated stuck point scenarios. Operators should consider factors such as the required impact force, frequency of jarring, and compatibility with other downhole tools when choosing the appropriate jar for a given application.
Training drilling crews in proper jar operation techniques is crucial for ensuring optimal performance and preventing misuse. This includes educating personnel on the correct procedures for activating and resetting jars, as well as interpreting surface indications of successful jarring. Implementing standardized operating procedures and decision-making flowcharts can help guide operators in selecting the appropriate jarring strategy based on the specific stuck situation encountered.
Technological Advancements
Embracing technological advancements in drilling jar design and materials can significantly improve their performance and reliability. Modern jars incorporate advanced materials, such as high-strength alloys and composite components, which offer improved durability and resistance to harsh downhole conditions. These materials can withstand higher temperatures, pressures, and corrosive environments, extending the operational range of drilling jars.
Smart jar technologies are emerging as a promising solution to many common jar problems. These advanced systems incorporate sensors and data transmission capabilities, allowing real-time monitoring of jar performance and downhole conditions. By providing accurate information on jar activation, impact force, and tool status, smart jars enable operators to make informed decisions and optimize jarring operations. Additionally, some smart jar systems offer remote activation and control features, enhancing safety and efficiency in challenging drilling scenarios.
Future Trends in Drilling Jar Technology
Artificial Intelligence Integration
The integration of artificial intelligence (AI) into drilling jar systems represents a significant leap forward in addressing common problems and optimizing performance. AI algorithms can analyze vast amounts of historical data and real-time information to predict potential jar failures before they occur. This predictive maintenance approach allows operators to schedule interventions proactively, reducing unplanned downtime and extending jar life.
AI-powered jarring systems can also optimize the jarring process by automatically adjusting parameters such as impact force and frequency based on downhole conditions and stuck pipe characteristics. This adaptive approach ensures that the jar delivers the most effective performance for each specific situation, maximizing the chances of freeing stuck equipment while minimizing the risk of tool damage or wellbore complications.
Advanced Materials Research
Ongoing research into advanced materials promises to revolutionize drilling jar design and address many common problems. Nano-engineered materials with enhanced strength-to-weight ratios and superior wear resistance are being developed to improve jar durability and performance. These materials could significantly extend the operational life of jars and reduce the frequency of maintenance and replacements.
Self-healing materials represent another exciting frontier in jar technology. These innovative materials have the ability to repair minor damage autonomously, potentially reducing the impact of wear and tear on jar components. By incorporating self-healing properties into seals, O-rings, and other critical elements, future drilling jars may be able to maintain their integrity and performance for longer periods, even in harsh downhole environments.
Energy-Efficient Designs
As the industry moves towards more sustainable practices, energy-efficient drilling jar designs are gaining attention. These innovative jars aim to maximize impact force while minimizing energy consumption and wear on components. One approach involves the development of hybrid jar systems that combine mechanical and hydraulic elements to optimize energy transfer and reduce operational costs.
Another area of focus is the creation of regenerative jarring systems. These advanced designs harness the energy generated during jarring operations to recharge onboard power sources or assist in subsequent jar activations. By improving energy efficiency, these technologies not only address common power-related problems but also contribute to the overall sustainability of drilling operations.
In conclusion, addressing common drilling jar problems requires a multifaceted approach that combines preventive maintenance, operational optimization, and the adoption of advanced technologies. By implementing these solutions and staying abreast of emerging trends, drilling contractors and operators can significantly enhance the reliability and effectiveness of their jarring operations. As the industry continues to evolve, the development of smarter, more durable, and energy-efficient jars will play a crucial role in overcoming downhole challenges and improving overall drilling efficiency. For more information on innovative drilling jar solutions and expert guidance, please contact us at oiltools15@welongpost.com.
