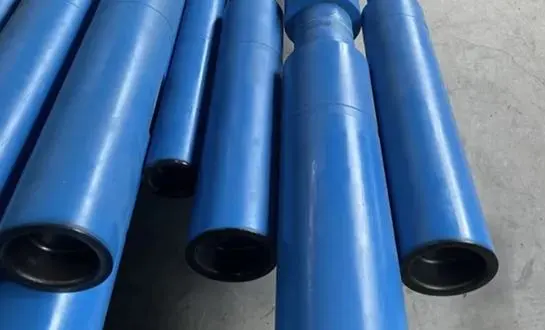

Two primary Types of Drilling Jars: hydraulic jars and mechanical jars
Drilling jars are critical tools used in the oil and gas industry to help free stuck pipe or equipment during drilling operations. There are two primary types of drilling jars: hydraulic jars and mechanical jars. Each type operates using different principles but serves the same purpose of dislodging stuck tools or pipes to continue the drilling process. Below, we’ll explore the characteristics and differences between these two essential tools.
Hydraulic Jars: Precision and Control
Hydraulic jars are known for their ability to deliver a precise, controlled force to free stuck equipment. These jars use hydraulic pressure to activate a piston, which compresses a spring inside the jar. Once the spring is fully compressed, the energy is released, creating a jarring impact. Hydraulic jars offer a significant advantage in deep or deviated wells, as they provide consistent force without the need for physical manipulation. The hydraulic pressure can be adjusted, allowing the operator to control the intensity of the force, making hydraulic jars ideal for a variety of well conditions. Due to their efficiency and flexibility, hydraulic jars are often favored in modern drilling operations.
Mechanical Jars: Simplicity and Reliability
Mechanical jars, on the other hand, operate based on a mechanical spring-loaded mechanism. These jars use a manual setting to store energy in a spring, which is then released when needed to deliver a jarring force. While mechanical jars may not offer the same level of precision as hydraulic jars, they are simpler in design and operation. They are often more affordable and reliable for use in less demanding environments. Mechanical jars are commonly used in shallower wells or situations where hydraulic pressure is not feasible. They are also well-suited for operators who prefer a more hands-on approach to managing the jarring process.
Critical Performance Parameters for Drilling Jars
Impact Force and Energy
The impact force of a drilling jar is a critical specification that determines its effectiveness in freeing stuck pipes. This force is typically measured in foot-pounds and can range from 100,000 to over 1,000,000 ft-lbs. The energy transfer efficiency is equally important, often exceeding 80% in high-quality jars. When selecting a jar, consider the specific requirements of your drilling project and the anticipated stuck pipe scenarios.
Operational Temperature Range
Drilling jars must perform reliably across a wide range of temperatures. Standard models typically operate effectively from 0°F to 350°F (-18°C to 177°C). However, specialized high-temperature jars can function in environments up to 500°F (260°C). It's crucial to match the jar's temperature rating with the expected downhole conditions to ensure consistent performance and longevity.
Durability and Maintenance Requirements
The durability of a drilling jar is reflected in its cycle life, often exceeding 1,000 full-force impacts for premium models. Maintenance intervals can vary, but many modern jars can operate for over 1,000 hours before requiring service. When evaluating jar specifications, consider the total cost of ownership, including maintenance requirements and potential downtime.
Selecting the Right Drilling Jar for Your Operations
Compatibility with Drill String Components
Ensuring compatibility between your drilling jar and other drill string components is crucial for optimal performance. Key specifications to consider include:
- Connection Types: API or premium thread connections
- Outside Diameter (OD): Ranging from 2-3/8" to 9-1/2" to match drill pipe
- Inside Diameter (ID): Typically 1-1/2" to 4" for fluid flow
Proper integration of the jar within the drill string enhances overall system efficiency and reduces the risk of equipment failures.
Hole Size and Formation Considerations
The specifications of your drilling jar should align with the hole size and formation characteristics of your project. Consider these factors:
- Maximum Hole Size: Jars are designed for specific hole diameter ranges
- Formation Hardness: Influences the required impact force and jar type
- Deviation Angle: Affects jar performance in directional drilling
Matching jar specifications to your specific drilling environment ensures optimal performance and reduces the risk of complications.
Cost-Benefit Analysis and ROI
When evaluating drilling jar specifications, it's essential to conduct a thorough cost-benefit analysis. Consider these financial aspects:
- Initial Investment: Premium jars may have higher upfront costs but offer long-term benefits
- Operational Efficiency: High-performance jars can significantly reduce non-productive time
- Maintenance Costs: Factor in the frequency and expense of required servicing
A comprehensive ROI assessment will help you choose a jar that balances performance with economic considerations.
In conclusion, understanding the specifications of drilling jars is crucial for optimizing your drilling operations. From mechanical to hydraulic designs, each type offers unique advantages suited to specific drilling scenarios. By carefully considering factors such as impact force, temperature range, and compatibility, you can select the ideal jar for your projects. Remember, the right drilling jar not only enhances efficiency but also contributes significantly to the safety and success of your drilling operations. For more information on drilling jars and other oilfield products, please don't hesitate to contact us at oiltools15@welongpost.com. Our team of experts is always ready to assist you in finding the perfect solution for your drilling needs.
