Essential Inspection Procedures for Drilling Jars
Visual Examination Techniques
Regular visual inspections are the first line of defense in drilling jar maintenance. Engineers should carefully examine the external surfaces of the jar for signs of wear, corrosion, or damage. Pay close attention to critical areas such as threaded connections, seals, and moving parts. Look for any cracks, dents, or unusual wear patterns that may indicate potential issues. It's also important to check for any foreign material or debris that could interfere with the jar's operation.
Non-Destructive Testing Methods
Beyond visual inspections, non-destructive testing (NDT) methods are invaluable for assessing the internal condition of drilling jars. Techniques such as magnetic particle inspection, ultrasonic testing, and dye penetrant testing can reveal hidden flaws or structural weaknesses that may not be visible to the naked eye. These methods help identify potential failure points before they become critical, allowing for proactive maintenance and replacement when necessary.
Performance Evaluation Protocols
Regular performance testing is crucial to ensure that drilling jars are functioning as intended. This involves simulating operating conditions and assessing the jar's response. Key parameters to evaluate include the jar's triggering mechanism, stroke length, and impact force. Engineers should also verify that the jar's hydraulic or mechanical systems are operating within specified tolerances. Proper documentation of these tests is essential for tracking performance trends and identifying potential issues early on.
Proper Cleaning and Lubrication Practices
Cleaning Techniques for Different Jar Types
Effective cleaning is fundamental to drilling jar maintenance. The cleaning process may vary depending on the type of jar (hydraulic, mechanical, or hydro-mechanical) and the specific drilling environment. For hydraulic jars, it's crucial to flush the internal chambers with appropriate cleaning solutions to remove any accumulated debris or contaminants. Mechanical jars require thorough cleaning of all moving parts, paying special attention to springs, detents, and locking mechanisms. Always use manufacturer-recommended cleaning agents and follow proper safety protocols during the cleaning process.
Selecting Appropriate Lubricants
Choosing the right lubricants is critical for optimal jar performance. Different components of the drilling jar may require specific types of lubricants based on their function and operating conditions. For example, high-temperature-resistant greases may be necessary for parts exposed to extreme downhole temperatures, while anti-seize compounds are essential for threaded connections. Consult the manufacturer's specifications and consider factors such as temperature range, pressure conditions, and compatibility with drilling fluids when selecting lubricants.
Lubrication Schedules and Techniques
Establishing and adhering to a proper lubrication schedule is vital for maintaining drilling jars. The frequency of lubrication may vary based on operating conditions and usage intensity. Develop a systematic approach to lubrication, ensuring that all critical points are addressed regularly. Pay special attention to areas prone to high wear, such as sliding surfaces and pivot points. Proper lubrication techniques, including the use of grease guns and injection systems, should be employed to ensure even distribution of lubricants and prevent over-greasing, which can lead to seal damage or compromised performance.
Storage and Handling Best Practices
Optimal Storage Conditions

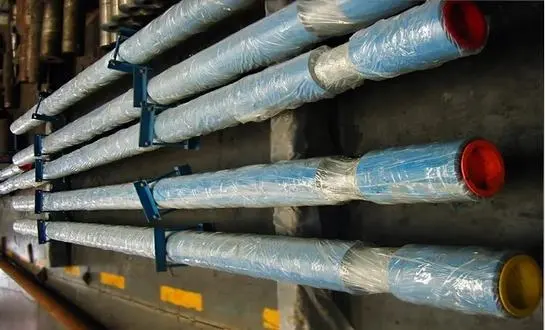

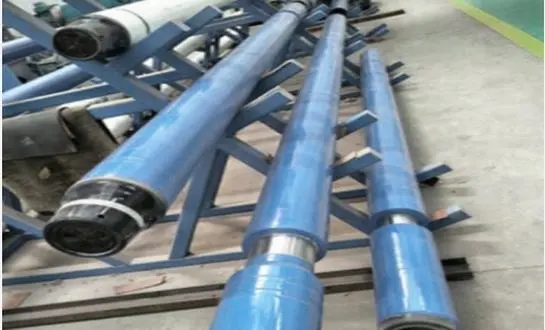

Proper storage is crucial for maintaining the integrity of drilling jars when they're not in use. Store jars in a clean, dry environment protected from extreme temperatures and humidity. Use appropriate racks or stands to prevent physical damage and ensure that jars are stored vertically to maintain their internal alignment. Implement a robust inventory management system to track the storage history and condition of each jar, facilitating timely maintenance and replacement schedules.
Transportation Guidelines
Safe transportation of drilling jars is essential to prevent damage during transit. Use specialized containers or racks designed to secure the jars and protect them from impacts and vibrations. Ensure that all protective caps and covers are in place before transportation. When loading or unloading jars, use appropriate lifting equipment and follow safe handling procedures to avoid personal injury or equipment damage. Develop and enforce clear protocols for jar transportation, including proper documentation and chain of custody procedures.
On-Site Handling Procedures
Proper handling of drilling jars at the well site is critical for maintaining their performance and safety. Train personnel on correct lifting and installation techniques to prevent damage to the jar or injury to workers. Implement a system for inspecting jars upon arrival at the site and before deployment downhole. Establish clear procedures for assembling and disassembling jar components, ensuring that all connections are properly torqued and secured. Develop contingency plans for handling jars in emergency situations, such as stuck pipe scenarios, to minimize the risk of damage or loss.
In conclusion, effective maintenance of drilling jars is crucial for ensuring their reliability and performance in challenging downhole conditions. By implementing these comprehensive maintenance tips, engineers can significantly extend the lifespan of their drilling jars, reduce operational downtime, and enhance overall drilling efficiency. Regular inspections, proper cleaning and lubrication, and careful handling practices are key to maximizing the value of these essential tools in the oil and gas industry. For more information on drilling jar maintenance and other oilfield products, please contact us at oiltools15@welongpost.com.
