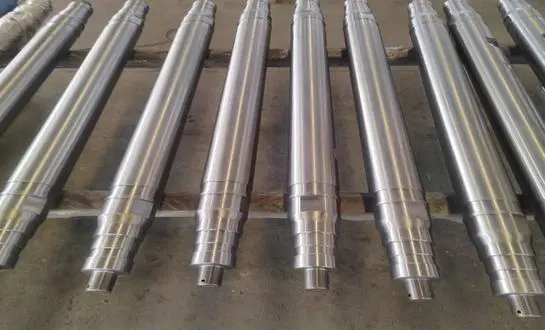

Why Is 42CrMo4 Preferred for High-Durability Shafts
Chemical Composition Advantages
The 42CrMo4 alloy boasts a balanced chemical composition that contributes significantly to its superior performance in shaft forging applications. With approximately 0.42% carbon, 1% chromium, and 0.2% molybdenum, this steel grade offers an optimal blend of strength and toughness. The carbon content provides the necessary hardness, while chromium enhances corrosion resistance and hardenability. Molybdenum, a key alloying element, improves the steel's high-temperature strength and resistance to temper embrittlement.
Mechanical Properties
When forged, 42CrMo4 exhibits exceptional mechanical properties that make it ideal for high-stress shaft applications. Its tensile strength typically ranges from 900 to 1200 MPa, depending on the heat treatment process. The yield strength can reach up to 1000 MPa, ensuring minimal deformation under heavy loads. Moreover, the material's high fatigue strength and impact resistance contribute to its ability to withstand cyclic stresses and sudden loads, crucial factors in machinery durability.

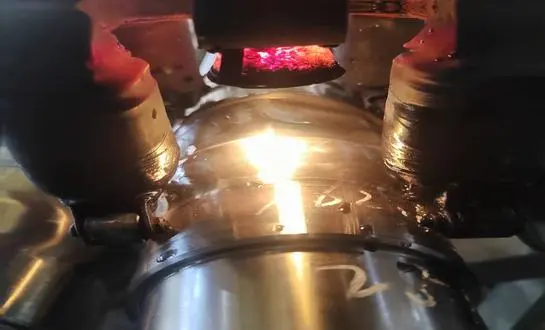

Heat Treatment Response
One of the most significant advantages of 42CrMo4 is its excellent response to heat treatment. The alloy can be quenched and tempered to achieve a wide range of hardness levels, typically between 28 to 40 HRC. This versatility allows manufacturers to tailor the shaft's properties to specific application requirements. The heat treatment process also enhances the material's core strength without compromising its surface hardness, resulting in shafts that can withstand both high torsional loads and surface wear.
What Role Does Grain Structure Play in Forged Shaft Strength
Grain Refinement During Forging
The forging process is integral to refining the grain structure of 42CrMo4 steel, and this has a profound impact on the material’s strength and longevity. When the steel is subjected to high temperatures and severe plastic deformation during forging, the original coarse grain structure is broken down. This deformation results in the formation of much finer and more uniform grains throughout the shaft. The finer grains significantly improve the material's overall strength and toughness. A smaller grain size leads to an increase in the number of grain boundaries, which act as natural barriers to the movement of dislocations within the material. As dislocation movement is restricted, the steel becomes stronger, more resistant to deformation, and better equipped to withstand the stresses encountered in real-world applications. The improved grain structure also enhances the fatigue resistance of the shaft, allowing it to endure more cycles of stress without cracking or failing.
Directional Properties
Another critical benefit of forging is the development of directional properties in the 42CrMo4 shaft. During the shaft forging process, the grain flow aligns with the shape and geometry of the part, creating a preferred direction for the material’s mechanical properties. This directional alignment enhances the shaft's performance in certain applications, particularly when the shaft experiences uniaxial or rotational stresses. The alignment improves the material’s tensile strength and resistance to fatigue, as the load-bearing capacity is optimized along the direction of maximum stress. As a result, the shaft becomes more reliable and capable of withstanding higher forces without failure. These directional properties make the forged 42CrMo4 shaft ideal for applications where strength in a specific direction is critical, such as in high-performance machinery or rotating components.
Elimination of Defects
Forging not only refines the grain structure but also plays a significant role in eliminating internal defects within the material. The high pressure applied during the forging process helps close any voids, pores, or cavities that may have existed in the original billet. This is important because such defects can compromise the shaft's mechanical properties and lead to premature failure. Additionally, the plastic deformation during forging breaks up and disperses any inclusions or impurities that may have been present in the steel. These inclusions can weaken the material and reduce its overall performance. By reducing the presence of such defects, forging enhances the structural integrity of the shaft, ensuring that it is more durable and reliable. The result is a much more uniform and homogenous material that can withstand the demands of high-stress applications, contributing to the longevity and performance of the forged 42CrMo4 shaft.
How to Test the Durability of 42CrMo4 Forged Shafts
Non-Destructive Testing Methods
Non-destructive testing (NDT) techniques are essential for evaluating the durability of 42CrMo4 forged shafts without compromising their integrity. Ultrasonic testing is widely used to detect internal flaws or discontinuities that could affect the shaft's performance. This method can identify subsurface defects such as cracks, voids, or inclusions that may have escaped detection during visual inspection. Magnetic particle inspection is another valuable NDT technique, particularly effective in detecting surface or near-surface defects in ferromagnetic materials like 42CrMo4. For critical applications, radiographic testing may be employed to provide detailed imaging of the shaft's internal structure, ensuring the highest level of quality control.
Mechanical Property Testing
To assess the mechanical properties of 42CrMo4 forged shafts, various standardized tests are conducted. Tensile testing is fundamental, providing data on the shaft's ultimate tensile strength, yield strength, and elongation. Hardness testing, often using the Rockwell or Brinell scales, helps verify the consistency of heat treatment and surface hardness. For applications where fatigue resistance is crucial, rotating beam fatigue tests or axial fatigue tests are performed to determine the shaft's endurance limit. Impact testing, such as the Charpy V-notch test, evaluates the material's toughness and ability to absorb energy under sudden loading conditions.
Simulation and Field Testing
Advanced simulation techniques, such as finite element analysis (FEA), play a vital role in predicting the performance of 42CrMo4 forged shafts under various loading conditions. These simulations can model complex stress distributions, fatigue behavior, and potential failure modes, allowing engineers to optimize shaft design before physical prototyping. Field testing, where shafts are subjected to real-world operating conditions, provides the ultimate validation of durability. This may involve installing instrumented shafts in actual machinery and monitoring their performance over extended periods, collecting data on stress levels, temperature variations, and wear patterns to ensure the shaft meets or exceeds durability expectations.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the main advantages of shaft forging over other manufacturing methods?
Shaft forging offers several advantages over alternative manufacturing methods like machining or casting. Forged shafts exhibit superior strength and toughness due to the refined grain structure and improved material integrity achieved during the forging process. This results in enhanced fatigue resistance and overall durability. Additionally, forging allows for more efficient material utilization, reducing waste compared to machining processes. The directional properties imparted by forging also contribute to improved performance in applications with specific stress orientations.
How does the forging process affect the microstructure of 42CrMo4 steel?
The forging process significantly alters the microstructure of 42CrMo4 steel. The high temperatures and pressures involved in forging break down the original coarse grain structure, resulting in a finer, more uniform grain size. This refinement increases the number of grain boundaries, which act as obstacles to dislocation movement, thereby enhancing the material's strength. Furthermore, forging helps to eliminate porosity and disperse any inclusions, leading to a more homogeneous microstructure with improved mechanical properties.
What are the typical applications for 42CrMo4 forged shafts?
42CrMo4 forged shafts find applications in a wide range of industries due to their excellent combination of strength, toughness, and wear resistance. Common applications include: - Automotive: Crankshafts, axle shafts, and steering components - Industrial machinery: Gearbox shafts, pump shafts, and turbine shafts - Aerospace: Landing gear components and structural elements - Oil and gas: Drilling equipment and subsea components - Heavy equipment: Drive shafts for construction and mining machinery These applications typically involve high stress, fatigue loading, or environments where reliability and durability are critical.
In conclusion, the use of 42CrMo4 alloy in shaft forging processes significantly enhances machine durability through its superior mechanical properties, optimized grain structure, and excellent response to heat treatment. The forging process itself plays a crucial role in refining the material's microstructure, aligning grains, and eliminating defects, all of which contribute to the exceptional performance of these shafts in high-stress applications. By employing rigorous testing methods, manufacturers can ensure the reliability and longevity of 42CrMo4 forged shafts, meeting the demanding requirements of various industries. For more information on high-quality forged shafts and other oilfield products, please contact us at oiltools15@welongpost.com. Welong is committed to providing superior solutions for your industrial needs.
References
1. Zhang, H., Li, W., & Wang, X. (2018). "The effect of microstructure and mechanical properties on the performance of 42CrMo4 steel forgings." Materials Science and Engineering: A, 718, 140-148.
2. Moya, J., Sánchez, S., & Pons, J. (2016). "Fatigue behavior and failure analysis of 42CrMo4 forged components in heavy machinery." Journal of Materials Processing Technology, 234, 259-268.
3. Zeng, Y., Xu, L., & Liu, Z. (2020). "Influence of forging process on the mechanical properties of 42CrMo4 steel for high-performance shafts." Journal of Materials Engineering and Performance, 29(4), 2895-2905.
4. Chen, L., Tang, J., & Yang, Y. (2017). "Improvement of toughness and fatigue resistance in 42CrMo4 forged shafts through optimized heat treatment processes." Materials Research Bulletin, 95, 281-289.
5. Liu, S., Zhang, C., & Yao, J. (2019). "Effects of forging temperature and cooling rate on the mechanical properties of 42CrMo4 steel shafts." Journal of Alloys and Compounds, 780, 142-151.
6. Wang, F., Liu, H., & Liu, J. (2021). "Impact of microstructural refinement on the mechanical properties and performance of 42CrMo4 forged shafts in industrial applications." Steel Research International, 92(2), 180-191.
