What Are the Most Common Shaft Forging Methods

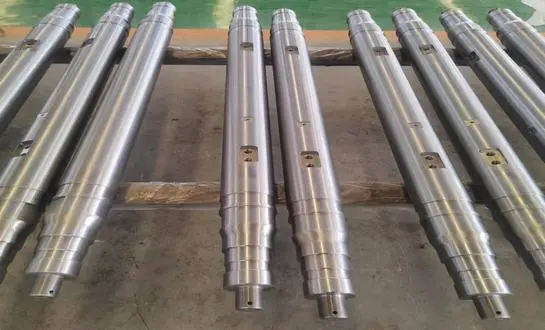

Open-Die Forging for Large Shafts
Open-die forging is a versatile method used for producing large-scale shafts. This technique involves pressing heated metal between flat dies, allowing for greater control over the final shape and dimensions. Open-die forging is particularly advantageous for creating shafts with complex geometries or those requiring frequent dimensional changes along their length. The process allows for the manipulation of the metal's internal grain structure, resulting in improved mechanical properties and enhanced durability.
Closed-Die Forging for Precision Shafts
Closed-die forging, also known as impression-die forging, is ideal for producing shafts with precise dimensions and intricate details. This method utilizes specially designed dies that completely enclose the workpiece, forcing the heated metal to conform to the die cavity's shape. Closed-die forging is particularly effective for high-volume production of shafts with consistent quality and tight tolerances. The process results in a near-net shape, reducing the need for extensive machining and minimizing material waste.
Roll Forging for Elongated Shafts
Roll forging is a specialized technique used to produce elongated shafts with uniform cross-sections. This method involves rotating a heated metal billet between two opposing rolls with shaped grooves. As the rolls rotate, they gradually reduce the billet's diameter while increasing its length. Roll forging is particularly efficient for creating long, slender shafts with improved mechanical properties and a refined grain structure. The process is well-suited for manufacturing components such as axles, propeller shafts, and drive shafts used in various industrial applications.
How Do Closed-Die and Open-Die Forging Differ for Shafts
Material Flow and Grain Structure
One of the key differences between closed-die and open-die forging lies in the way material flows during the process. In closed-die forging, the metal is forced to conform to the die cavity's shape, resulting in a more controlled material flow and a more uniform grain structure throughout the shaft. This leads to consistent mechanical properties across the entire component. Open-die forging, on the other hand, allows for greater freedom in material flow, which can be advantageous when working with large or complex shafts. The open nature of the process enables skilled operators to manipulate the workpiece, ensuring proper grain flow and optimizing the shaft's strength characteristics.
Size and Complexity Limitations
Closed-die forging is typically limited by the size and complexity of the die cavity. While it excels in producing precise, smaller to medium-sized shafts, it may not be suitable for very large or highly complex components. Open-die forging, conversely, has fewer size limitations and can accommodate shafts of virtually any size or shape. This flexibility makes open-die forging the preferred method for manufacturing oversized shafts used in heavy industrial applications, such as those found in large marine engines or power generation turbines.
Production Volume and Cost Considerations
The choice between closed-die and open-die forging often depends on production volume and cost factors. Closed-die forging is generally more cost-effective for high-volume production runs, as the initial die costs can be amortized over a large number of parts. The process also results in near-net shapes, reducing machining costs and material waste. Open-die forging, while more labor-intensive and potentially slower, offers greater flexibility and lower tooling costs for small to medium production runs or custom shaft designs. This method is particularly valuable when producing prototypes or when frequent design changes are anticipated.
How to Achieve Precision in Industrial Shaft Forging
Advanced Die Design and Simulation
Achieving precision in industrial shaft forging begins with advanced die design and simulation techniques. Computer-aided design (CAD) and finite element analysis (FEA) tools allow engineers to optimize die geometries and predict material flow behavior during the forging process. These simulations help identify potential issues such as underfilling, folding, or excessive flash formation before actual production begins. By refining die designs through iterative simulations, manufacturers can significantly improve the accuracy and consistency of forged shafts, reducing the need for costly trial-and-error approaches.
Temperature Control and Material Selection
Precise temperature control is crucial for achieving dimensional accuracy and desired mechanical properties in forged shafts. Advanced heating systems, such as induction heaters or controlled atmosphere furnaces, ensure uniform heating of the workpiece to the optimal forging temperature. Equally important is the careful selection of materials with appropriate forging characteristics. Alloys designed specifically for forging applications often exhibit superior flow properties and resistance to defect formation during the forging process. The combination of precise temperature control and well-chosen materials significantly contributes to the overall quality and precision of the forged shafts.

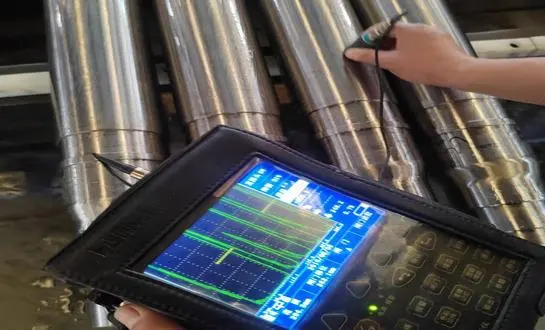

Post-Forging Heat Treatment and Machining
To achieve the highest levels of precision in industrial shaft forging, post-forging processes play a critical role. Controlled cooling and heat treatment procedures help optimize the microstructure and mechanical properties of the forged shafts. Techniques such as normalizing, quenching, and tempering can be employed to fine-tune the shaft's strength, toughness, and dimensional stability. Following heat treatment, precision machining operations are often necessary to achieve final tolerances and surface finishes. Advanced CNC machining centers, equipped with high-precision tooling and sophisticated measurement systems, ensure that the forged shafts meet the most stringent dimensional and surface quality requirements.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of shaft forging over other manufacturing methods?
Shaft forging offers several significant advantages over alternative manufacturing methods. The process results in components with superior strength-to-weight ratios, enhanced fatigue resistance, and improved grain structure. Forged shafts typically exhibit better mechanical properties compared to cast or machined counterparts, making them ideal for high-stress applications. The forging process also allows for greater design flexibility and the ability to create complex geometries while maintaining structural integrity. Additionally, forged shafts often require less material removal during final machining, leading to reduced waste and potentially lower overall production costs.
How does shaft forging impact the performance of oil and gas drilling equipment?
In the oil and gas industry, shaft forging plays a crucial role in enhancing the performance and reliability of drilling equipment. Forged shafts used in drilling operations exhibit superior strength and durability, enabling them to withstand the extreme forces and harsh environmental conditions encountered in deep-well and offshore drilling. The improved grain structure resulting from the forging process contributes to enhanced fatigue resistance, reducing the risk of premature failure during prolonged operations. Forged shafts also demonstrate better resistance to corrosion and wear, extending the service life of critical drilling components and minimizing costly downtime for equipment maintenance or replacement.
What are the latest advancements in shaft forging technology?
Recent advancements in shaft forging technology have focused on improving precision, efficiency, and material properties. One notable development is the integration of real-time process monitoring and adaptive control systems in forging equipment. These systems use sensors and advanced algorithms to continuously adjust forging parameters, ensuring consistent quality and reducing defects. Another area of innovation is the development of hybrid forging processes that combine traditional forging techniques with emerging technologies such as additive manufacturing. This approach allows for the creation of complex preforms that can be subsequently forged to achieve desired properties. Additionally, advancements in alloy design and thermomechanical processing have led to the development of new materials specifically optimized for forging applications, offering improved performance characteristics for forged shafts.
In conclusion, industrial shaft forging techniques and applications continue to evolve, offering enhanced performance and reliability for various industries, particularly in oil and gas drilling operations. As technology advances, the precision and efficiency of shaft forging processes are expected to improve further, meeting the ever-increasing demands of modern industrial applications. For more information on industrial shaft forging and its applications in the oil and gas industry, please contact us at oiltools15@welongpost.com. Welong is committed to providing high-quality forged components and comprehensive supply chain solutions to meet your specific needs.
