Design and Functionality of Float Shoes
Components and Construction

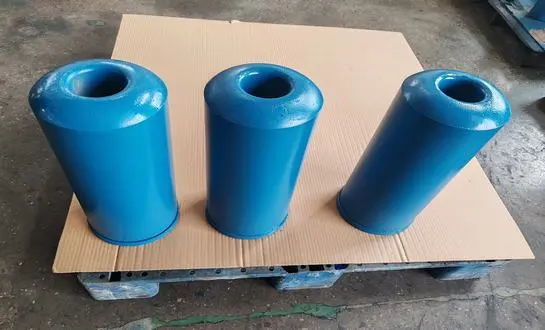

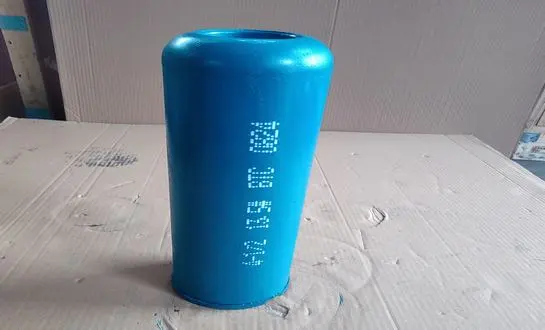

The float shoe consists of several key components that work in harmony to enhance cementing operations. At its core is a robust steel body, engineered to withstand the harsh downhole conditions. This body houses a precision-machined internal passageway that allows for controlled fluid flow. A critical element is the check valve, typically a ball-and-seat or flapper-type mechanism, which permits one-way flow and prevents backflow of cement. The shoe also incorporates jets or nozzles strategically positioned to optimize fluid dynamics during circulation and cement placement.
Operating Principles
Float shoes operate on the principle of differential pressure and fluid dynamics. As drilling fluid is pumped down the casing, it passes through the float shoe, creating a pressure differential that keeps the check valve open. This allows for circulation and hole cleaning. When cement slurry is introduced, it follows the same path, displacing the drilling fluid. Once pumping ceases, the check valve closes, preventing cement backflow and maintaining the column height. This mechanism is crucial for achieving the desired cement placement and ensuring well integrity.
Variations and Adaptations
Float shoes come in various designs to suit different well conditions and cementing requirements. Some variations include: - Guide shoes: Featuring a rounded nose to facilitate easier casing running in deviated wells. - Differential fill-up shoes: Allowing controlled filling of the casing during run-in to reduce surge pressures. - Auto-fill float shoes: Incorporating a mechanism that allows automatic filling of the casing to a predetermined level. These adaptations enable operators to tailor the float shoe's functionality to specific well characteristics and cementing objectives.
Impact on Cement Placement Efficiency
Improved Fluid Dynamics
Float shoes significantly enhance fluid dynamics during the cementing process. Their carefully engineered design promotes laminar flow patterns, reducing turbulence and minimizing the risk of cement contamination. The optimized flow characteristics allow for more uniform displacement of drilling fluids, ensuring a cleaner wellbore for cement placement. This improved fluid behavior translates to better cement distribution along the annulus, contributing to a more effective seal between the casing and formation.
Precise Cement Placement
The incorporation of a float shoe enables more precise control over cement placement. By preventing backflow and maintaining hydrostatic pressure, these tools ensure that the cement slurry reaches its intended location within the wellbore. This precision is particularly crucial in zonal isolation applications, where accurate cement placement is essential for effective compartmentalization of different formations. The ability to place cement with greater accuracy reduces the likelihood of channeling and improves the overall quality of the cement job.
Reduced Contamination Risk
Float shoes play a vital role in minimizing the risk of cement contamination. The one-way valve mechanism effectively separates the cement slurry from wellbore fluids, preventing mixing and maintaining cement integrity. This separation is crucial for preserving the desired properties of the cement, such as setting time and compressive strength. By reducing contamination, float shoes contribute to the formation of a more homogeneous and reliable cement sheath, essential for long-term well integrity and zonal isolation.
Operational Benefits and Considerations
Time and Cost Efficiency
The implementation of float shoes in cementing operations yields significant time and cost benefits. By facilitating smoother circulation and more efficient cement placement, these tools reduce the overall duration of the cementing process. This time savings translates directly into reduced rig time and associated costs. Additionally, the improved cement placement efficiency often results in fewer remedial cementing jobs, further contributing to cost savings. For drilling contractors and operators, this enhanced efficiency can lead to substantial improvements in project economics and well delivery timelines.
Well Integrity Enhancement
Float shoes play a crucial role in enhancing overall well integrity. The precise cement placement and reduced contamination risk facilitated by these tools contribute to the formation of a more robust and uniform cement sheath. This improved cement job quality translates to better zonal isolation, reduced risk of gas migration, and enhanced long-term well stability. The use of float shoes thus becomes a key factor in ensuring the long-term productivity and safety of the well, aligning with the stringent requirements of modern well construction practices.
Selection and Application Considerations
Choosing the appropriate float shoe for a specific well application requires careful consideration of various factors. These include: - Well depth and trajectory - Formation characteristics - Anticipated pressure regimes - Cement slurry properties - Operational constraints Engineers must evaluate these parameters to select a float shoe design that optimizes cementing efficiency while meeting the unique challenges of each well. Proper selection and application of float shoes are critical for maximizing their benefits and ensuring successful cementing operations.
In conclusion, float shoes are indispensable tools in modern well construction, significantly enhancing cement placement efficiency and contributing to overall well integrity. Their sophisticated design and functionality enable precise control over cement placement, improved fluid dynamics, and reduced contamination risks. For drilling contractors, engineers, and operators in the oil and gas industry, understanding and leveraging the capabilities of float shoes is crucial for optimizing cementing operations and achieving superior well construction outcomes. As the industry continues to tackle more challenging well environments, the role of float shoes in ensuring efficient and effective cementing processes becomes increasingly vital. For more information on float shoes and other cementing tools, please contact us at oiltools15@welongpost.com.
