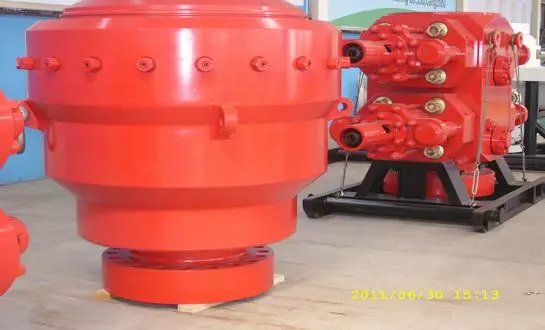

How often should annular BOPs be inspected
Regulatory requirements
The inspection frequency of Annular Blowout Preventers (BOPs) is subject to stringent regulatory standards established by industry authorities such as the Bureau of Safety and Environmental Enforcement (BSEE) and the American Petroleum Institute (API). These regulations ensure that safety protocols are followed during drilling operations, with routine inspections typically required every 14 days to assess the integrity and functionality of the BOP. The goal is to detect any potential issues early and prevent catastrophic failures. However, many operators take a proactive approach by conducting more frequent inspections than the minimum mandated by regulations. This approach helps to maintain a higher level of operational safety, allowing for prompt identification and resolution of any concerns that may arise, particularly during extended or complex drilling operations.
Operational considerations
Inspection schedules for annular BOPs can vary based on the specific conditions of the drilling operation. For instance, wells that are subjected to high-pressure, high-temperature environments, or those operating in corrosive conditions, often require more frequent inspections to ensure that the equipment remains in peak condition. The harsh conditions may accelerate wear on the BOP components, making it more critical to monitor the system closely. Additionally, after any critical operation or pressure test, a visual inspection is usually carried out to quickly detect any immediate issues, such as leaks or mechanical failure, that could compromise well control.
Manufacturer recommendations
BOP manufacturers typically provide detailed inspection guidelines tailored to their specific equipment designs. These guidelines often recommend daily visual checks, weekly function tests, and more comprehensive inspections at longer intervals. Following these recommendations is essential not only for the reliable operation of the BOP but also for ensuring that the equipment remains under warranty. Routine adherence to manufacturer guidelines helps maintain the longevity and efficiency of the BOP system, reducing the risk of unexpected failures and downtime, while promoting a safer working environment on the rig.
What are common failure points in annular BOPs
Elastomeric sealing element degradation
The elastomeric sealing element in an annular Blowout Preventer (BOP) is one of the most critical components, and it is highly susceptible to degradation over time. This sealing element is exposed to various harsh conditions, including drilling fluids, extreme temperature changes, and repeated activation during drilling operations. These factors can contribute to the formation of cracks, tears, or even a complete loss of elasticity in the material. As the elastomeric sealing element deteriorates, its ability to provide a tight seal decreases, leading to the potential for leaks. This can jeopardize the safety of the entire operation by compromising the BOP’s primary function of controlling well pressure. Therefore, regular inspections of the sealing element are crucial to ensure that it is in optimal condition, preventing leaks and maintaining the BOP’s sealing capability. Timely replacement of worn or damaged elastomeric seals is essential to maintain the effectiveness of the well control system and prevent catastrophic failures.
Hydraulic system issues
The hydraulic system is an integral part of the annular BOP's functionality. It provides the force necessary to operate the BOP’s sealing mechanism. Failures within this system can severely affect the BOP’s ability to close properly and control well pressure. Common issues include hydraulic line leaks, malfunctioning valves, or contamination of the hydraulic fluid, all of which can lead to slow or incomplete activation of the BOP. Inadequate fluid pressure can result in delayed closing times, reducing the BOP’s effectiveness in preventing blowouts. Moreover, contaminated fluid can cause internal damage to the hydraulic components, further compromising the system’s reliability. Regular checks for leaks, proper fluid levels, and contamination are essential to ensure that the hydraulic system is functioning properly. Routine maintenance and immediate troubleshooting of hydraulic issues help to maintain the overall performance and safety of the annular BOP.
Piston and packing wear
The piston and packing elements within an annular BOP are critical for creating a seal around the wellbore. These components are subjected to intense pressure, high temperatures, and abrasive conditions downhole, leading to natural wear and tear over time. Repeated use can cause the piston to lose its efficiency or the packing to become damaged, resulting in reduced sealing capacity. Worn pistons or packing materials can prevent the BOP from sealing properly, which may lead to a loss of well control and potential safety hazards. Regular inspection of these components is necessary to detect early signs of wear or damage. Replacing damaged pistons and packing in a timely manner is essential to maintain optimal performance and ensure that the annular BOP remains capable of effectively managing well pressure during drilling operations. Routine checks and proactive maintenance of these elements are key to preventing failures and maintaining safety standards in the field.
How do you inspect the annular BOP element
Visual examination
The visual examination of the Annular Blowout Preventer element is the initial and fundamental step in assessing its condition. During this process, the elastomeric sealing element is meticulously inspected for visible signs of wear, cuts, or deformation. Inspectors look closely for any discoloration or changes in the texture of the elastomer, which may suggest chemical degradation, such as hardening, cracking, or swelling. These changes are often the result of exposure to drilling fluids, extreme temperatures, or chemical contaminants. Inspecting the housing and support structures is equally important, as any corrosion, cracks, or structural damage to these components can compromise the effectiveness of the sealing element. A thorough visual inspection helps identify early signs of potential failure before they escalate into more serious issues, allowing for timely repairs or replacements to maintain the integrity of the BOP system.
Dimensional checks
Once the visual examination is complete, precise dimensional checks are carried out to ensure that the annular BOP element still meets the manufacturer’s specifications. This includes measuring key parameters such as the inner and outer diameters of the elastomeric element, its overall height, and any other specific dimensional characteristics outlined in the equipment manual. These measurements are critical because any deviation from the original specifications may indicate that the element has undergone wear or deformation that could affect its sealing performance. Small changes in size, especially in the sealing surfaces, can lead to a poor seal and potentially a loss of well control. Dimensional checks provide a clear and quantitative assessment of the element’s condition, helping operators determine whether replacement or maintenance is required.
Functional testing
Functional testing is essential to ensure that the annular BOP operates as intended under real-world conditions. During this phase, the BOP is actuated to verify its ability to open and close correctly, mimicking the pressures and movements it will experience during normal operation. The test also evaluates the element’s ability to form a proper seal when engaged, ensuring it can effectively isolate the wellbore and prevent blowouts. During functional testing, pressure tests are also performed to confirm that the BOP element can withstand the required working pressures without any leakage. If any discrepancies, such as delayed closing times, incomplete sealing, or pressure loss, are detected during testing, they are carefully documented and analyzed. These issues must be addressed immediately to ensure that the annular BOP can reliably perform in the high-stakes environment of well control operations.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
What is the lifespan of an annular BOP element?
The lifespan of an annular BOP element can vary significantly depending on usage conditions and maintenance practices. Generally, under normal operating conditions, an element may last between 3 to 5 years. However, in harsh environments or with frequent use, replacement might be necessary more often. Regular inspections and adherence to manufacturer guidelines are crucial for determining the optimal replacement schedule.
Can annular BOP elements be repaired?
In most cases, annular BOP elements cannot be repaired due to the critical nature of their function and the potential risks associated with compromised integrity. Minor surface imperfections might be addressed, but any significant damage or wear typically requires complete element replacement to ensure safety and reliability.
How does temperature affect annular BOP performance?
Temperature has a significant impact on annular BOP performance, particularly on the elastomeric sealing element. Extreme heat can cause the element to soften and deform, potentially leading to premature wear or failure. Conversely, very low temperatures can cause the element to harden and lose flexibility, compromising its sealing ability. Operators must choose BOP elements rated for the specific temperature ranges encountered in their drilling operations.
In conclusion, the maintenance and inspection of Annular BOPs are critical processes that ensure the safety and efficiency of drilling operations. Regular, thorough inspections, coupled with proper maintenance procedures, can significantly extend the life of these crucial components and prevent catastrophic failures. Welong is concentrating on the oilfield products and customized products, aiming at empowering the world with the finest supply chain of China. Since the establishment, we provide our customers with solutions, products as well as services. For more information on Annular Blowout Preventers and their maintenance, please contact us at oiltools15@welongpost.com.
