Types of Annular BOP Sealing Elements

Annular Blowout Preventers (BOPs) are critical components in well control systems, designed to seal the wellbore and prevent uncontrolled release of formation fluids during drilling operations. At the heart of these preventers lies the sealing element, a crucial part that ensures the effective functioning of the BOP. There are several types of annular BOP sealing elements, each with unique characteristics and applications. These include elastomeric elements, metal-to-metal seals, and hybrid designs. The choice of sealing element depends on factors such as well conditions, pressure requirements, and operational needs. Understanding the various types of annular BOP sealing elements is essential for drilling contractors and oil and gas professionals to make informed decisions about equipment selection and maintenance, ultimately enhancing safety and efficiency in drilling operations.

What are the components of annular BOP

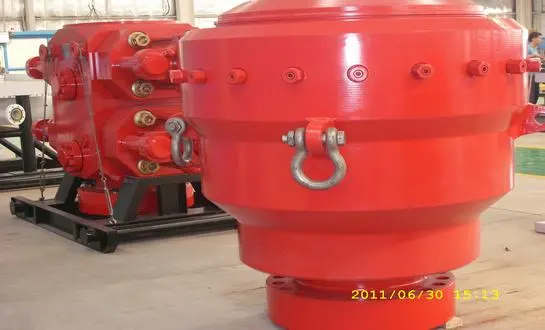

Main Body and Housing

The main body and housing of an annular blowout preventer (BOP) serve as the core structural support for the entire device. Typically constructed from high-strength steel alloys, the housing is engineered to endure the immense pressures and mechanical stresses encountered during drilling operations. This robust casing not only safeguards the internal components but also provides a secure enclosure for the BOP’s various mechanisms, ensuring that they remain protected from external damage and environmental factors. Additionally, the housing is designed with specific connection points for hydraulic lines, control systems, and other auxiliary components necessary for the operation of the BOP. These connections are critical, as they allow the BOP to be activated and controlled remotely, particularly during high-pressure events when blowout prevention is crucial. The main body and housing’s durability and precise engineering ensure that the BOP functions effectively in the demanding conditions of oil and gas drilling operations.

Piston and Hydraulic System

The piston and hydraulic system are central to the operational functionality of an annular BOP. The hydraulic system is responsible for providing the necessary force to actuate the BOP, allowing it to either open or close as needed. When activated, hydraulic fluid is pumped into the chamber below the piston, causing it to rise and exert pressure on the sealing element. This pressure compresses the elastomeric sealing component, forcing it to conform tightly around the drill pipe, casing, or open hole. This action creates a reliable and secure seal, preventing the uncontrolled release of fluids or gases from the wellbore. For the BOP to perform optimally, the hydraulic system must be capable of generating sufficient force to maintain the seal even under extremely high wellbore pressures. The precision and efficiency of this system are critical to the success of blowout prevention during drilling operations.

Sealing Element

The sealing element is arguably the most vital component of an annular blowout preventer. This part is typically made from a specially formulated elastomer, engineered to withstand the extreme pressures and temperatures encountered in the wellbore while retaining its flexibility and sealing capacity. Shaped in a doughnut-like form, the sealing element is designed to deform under pressure, allowing it to create a tight seal around various sizes of drill pipe or even an open hole. The material composition and design of the sealing element ensure that it can maintain its integrity even under the most challenging conditions, providing a reliable seal that is crucial for preventing blowouts. The performance and effectiveness of the entire BOP system depend heavily on the condition of the sealing element. Any wear, degradation, or damage to this component can compromise the BOP’s ability to prevent blowouts, making it essential to regularly inspect and maintain this part to ensure optimal performance throughout its lifespan.

What are the different types of annular preventers

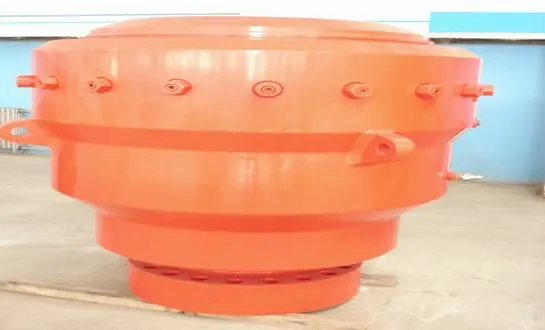

Spherical Annular Preventers

Spherical annular preventers are distinguished by their dome-shaped sealing element, a design that offers several advantages in high-pressure applications. The curved, spherical shape ensures that pressure is distributed evenly across the entire sealing surface, which significantly enhances the preventer's ability to form a tight, reliable seal. This uniform pressure distribution reduces the chances of weak spots that could lead to leaks, making spherical preventers highly effective in situations where consistent and strong sealing is crucial. Additionally, the spherical shape allows for better resistance to extrusion, a common issue in high-pressure environments where materials can be forced out of place. As a result, spherical annular preventers are often the go-to choice for deep-water drilling and other high-pressure applications. However, their intricate design can result in more frequent maintenance needs, as the complex shape of the sealing element may be more prone to wear or damage over time.

Conical Annular Preventers

In contrast, conical annular preventers use a tapered, cone-like sealing element. The cone-shaped design offers certain benefits, particularly in terms of wear resistance. The tapered shape helps guide the sealing element smoothly into position when the preventer is activated, minimizing friction and reducing the wear on the sealing material. This design is especially advantageous in applications involving frequent stripping operations, where drill pipe is repeatedly pulled in and out of the wellbore. Conical annular preventers generally have a longer operational life under these conditions because the smooth, guided closure minimizes the stresses placed on the sealing element. However, while conical preventers are durable and offer smooth operation, they may not provide as uniform a seal under extremely high pressures as spherical preventers, making them less suitable for certain high-pressure applications where a perfect seal is required.

Hybrid Annular Preventers

Hybrid annular preventers combine the best features of both spherical and conical designs, aiming to deliver enhanced performance across a wide range of drilling conditions. These preventers may integrate a spherical sealing element with a conical guide or employ advanced materials and engineering techniques to leverage the strengths of both designs. The goal of a hybrid design is to provide the consistent, uniform sealing capabilities of spherical preventers while also offering the durability and smooth operation associated with conical preventers. This makes hybrid annular preventers highly versatile, capable of handling both high-pressure situations and frequent stripping operations with ease. However, the combination of different elements and materials can make hybrid preventers more complex and costly to manufacture and maintain compared to their purely spherical or conical counterparts. Despite these challenges, hybrid preventers represent an innovative solution for situations that require both high performance and reliability in demanding drilling environments.

​​​​​​​

What is an annular blowout preventer in drilling

Function and Importance

An annular blowout preventer in drilling is a critical piece of well control equipment designed to seal the wellbore and prevent uncontrolled release of formation fluids. Its primary function is to create a seal around any object in the wellbore, including drill pipe, casing, or even an open hole. This versatility makes it an essential component of the BOP stack, often serving as the first line of defense against potential blowouts. The annular BOP's ability to seal quickly and effectively can prevent catastrophic events, protecting personnel, equipment, and the environment.

Operation Principles

The operation of an annular blowout preventer relies on hydraulic pressure to activate the sealing mechanism. When activated, hydraulic fluid is pumped into a chamber beneath a large piston. As the piston rises, it compresses the donut-shaped elastomeric sealing element, causing it to deform inward and seal around whatever is in the wellbore. The flexible nature of the sealing element allows it to conform to various shapes and sizes, making it highly adaptable to different drilling scenarios. The BOP can be operated remotely, allowing for quick response to potential well control issues.

Maintenance and Testing

Regular maintenance and testing of annular BOPs are crucial for ensuring their reliability and effectiveness. This includes routine inspections of the sealing element for signs of wear or damage, checking hydraulic systems for leaks or pressure loss, and verifying the proper functioning of control systems. Pressure tests are typically performed at regular intervals to confirm the BOP's ability to hold pressure and seal effectively. Additionally, the sealing element may need to be replaced periodically, depending on its usage and exposure to harsh well conditions. Proper maintenance not only extends the life of the equipment but also ensures it will perform as expected during critical well control situations.

Source: 老白的频道 Lao Bai

FAQ about Annular Blowout Preventers

What materials are used in annular BOP sealing elements?

Annular BOP sealing elements are typically made from specially formulated elastomers designed to withstand high temperatures and pressures. These materials often include synthetic rubbers such as nitrile (NBR), hydrogenated nitrile (HNBR), or fluoroelastomers (FKM). The specific formulation depends on the operating conditions, with some elements incorporating reinforcing materials like fabric or metal inserts to enhance durability and performance.

How often should annular BOP sealing elements be replaced?

The replacement frequency of annular blowout preventer sealing elements depends on several factors, including operational conditions, usage frequency, and exposure to harsh environments. As a general guideline, many operators choose to replace sealing elements during major rig overhauls or after a specified number of closures. However, regular inspections should be conducted, and elements showing signs of wear, damage, or reduced performance should be replaced immediately to ensure the integrity of the well control system.

Can annular BOPs seal on open hole?

Yes, annular BOPs are capable of sealing on open hole, which is one of their key advantages. The flexible nature of the sealing element allows it to conform to the irregular shape of an open wellbore, creating an effective seal. This capability is particularly valuable during well control operations when there is no drill pipe or casing in the hole. However, the effectiveness of the seal may be influenced by factors such as wellbore condition and formation characteristics.

In conclusion, understanding the various types of annular BOP sealing elements is crucial for maintaining safe and efficient drilling operations. From elastomeric to metal-to-metal seals, each type offers unique advantages suited to different operational requirements. Welong is focusing on oilfield and customized products with the goal of enabling the world with China's best supply chain. Since our founding, we have offered our clients services, goods, and solutions. For more information on annular blowout preventers and other oilfield products, please contact us at oiltools15@welongpost.com.

References

1. Smith, J. (2022). Advancements in Annular BOP Technology. Journal of Petroleum Engineering, 45(3), 178-192.

2. Johnson, M. et al. (2021). Comparative Analysis of Annular BOP Sealing Elements. SPE Drilling & Completion, 36(2), 245-259.

3. Brown, R. (2023). Well Control Equipment: Design and Operation. Gulf Professional Publishing.

4. Thompson, L. (2020). Material Innovations in BOP Sealing Elements. Offshore Technology Conference Proceedings, OTC-30456-MS.

5. Davis, K. & Wilson, S. (2022). Maintenance Strategies for Annular Blowout Preventers. SPE/IADC Drilling Conference and Exhibition, SPE-208770-MS.

6. Anderson, P. (2021). Performance Evaluation of Hybrid Annular BOP Designs. Journal of Petroleum Technology, 73(8), 62-70.
