What Tempering Temperatures Maximize 42CrMo4 Toughness?
Optimal Tempering Range for 42CrMo4
The tempering process is essential in achieving the right balance of strength and toughness for 42CrMo4 steel, particularly in applications like shaft forging, where durability and reliability are key. The ideal tempering temperatures range between 540°C and 680°C (1004°F to 1256°F). Within this range, the steel undergoes a controlled transformation where martensite, formed during quenching, decomposes into a more stable and tough microstructure. This process enhances the material's ability to withstand stress and wear, making it suitable for high-performance components like shafts in heavy-duty machinery.
Effects of Tempering Temperature on Mechanical Properties
The mechanical properties of 42CrMo4 steel evolve as the tempering temperature increases within the recommended range. Key changes include a gradual decrease in hardness and tensile strength, while ductility and impact toughness improve. This shift is crucial for ensuring that the material can absorb energy without fracturing, which is especially important for components subjected to dynamic loads. Additionally, the tempering process helps relieve the residual stresses induced during quenching, reducing the risk of cracking. With these adjustments, the fatigue resistance of the material is enhanced, making 42CrMo4 a robust choice for applications like forged shafts, where resistance to cyclic loading is critical.
Time-Temperature Relationship in Tempering
The duration of the tempering process significantly impacts the final properties of the material. Typically, tempering times range from 1 to 4 hours, with longer times ensuring more complete stress relief and a more uniform microstructure. However, the time and temperature are inversely related – higher temperatures can achieve the same results in shorter periods. It's important to tailor the tempering time and temperature to the specific needs of the application. For example, in the case of 42CrMo4 shaft forging, the correct combination of time and temperature ensures that the steel retains sufficient strength while becoming tougher, making it ideal for demanding industrial applications.
How Does Quenching Prevent Brittleness in 42CrMo4 Shafts?
Importance of Proper Quenching
Quenching is a critical heat treatment process for 42CrMo4 shaft forging, as it plays a pivotal role in determining the final mechanical properties of the material. During quenching, the steel is rapidly cooled from its austenitizing temperature (around 850°C to 880°C) to room temperature or slightly above, usually in a quenching medium like oil or water. The primary goal is to transform the steel's microstructure into martensite, a hard but brittle phase that significantly increases the material’s strength. However, improper quenching can result in issues such as excessive brittleness, residual stresses, and even cracking. This makes it essential to carefully control the quenching process to achieve the desired balance between hardness and toughness, particularly for components like shafts that are subjected to high mechanical loads in service.
Quenching Media Selection
The choice of quenching medium significantly affects the final properties of the shaft. Common quenching media for 42CrMo4 include:
- Oil: This medium provides a moderate cooling rate, offering a good balance between hardness and toughness. It reduces the risk of cracking compared to faster cooling methods while still ensuring that the steel achieves the desired hardness. Oil quenching is often the preferred method for 42CrMo4 due to its ability to minimize thermal shock and the potential for warping.
- Polymer solutions: These offer controllable cooling rates, allowing manufacturers to fine-tune the process for a specific combination of hardness and reduced distortion. They are particularly useful in applications where precision is paramount.
- Water: While water provides the fastest cooling rate, it can lead to higher stresses within the material, increasing the risk of cracking and distortion. For this reason, water quenching is generally avoided for 42CrMo4 unless the application specifically demands extreme hardness and the risks can be managed.
Oil quenching is often preferred for 42CrMo4 as it offers a good balance between hardness and toughness while minimizing the risk of quench cracking.
Controlled Cooling Rates
Achieving the optimal cooling rate during quenching is vital to preventing issues like cracking or distortion, especially for 42CrMo4 shaft forging. If the cooling rate is too rapid, it can induce excessive internal stresses, leading to cracking and brittleness. On the other hand, if the cooling rate is too slow, the steel may not fully transform into the desired martensitic structure, resulting in lower hardness and compromised performance. To prevent these problems, advanced quenching techniques such as interrupted quenching or step quenching can be used. These methods allow for more control over the cooling rate, ensuring that the material cools uniformly and that the resulting microstructure is both strong and tough. By optimizing the quenching process, manufacturers can ensure that the 42CrMo4 shafts are durable, resistant to wear, and capable of withstanding the demands of high-performance applications.
How to Avoid Cracking During 42CrMo4 Heat Treatment?
Pre-heat Treatment Considerations
Preventing cracking during heat treatment of 42CrMo4 begins well before the actual thermal processing. Key considerations include:
- Uniform heating: Ensure even temperature distribution throughout the shaft forging
- Stress relief: Perform stress relief annealing prior to hardening, especially for complex geometries
- Surface preparation: Remove any surface defects that could act as crack initiation sites
These preparatory steps significantly reduce the risk of cracking during subsequent heat treatment stages.
Optimizing Austenitizing Parameters
The austenitizing process, where the steel is heated to transform its microstructure, is critical in preventing cracking. Key factors to consider include:
- Temperature control: Maintain precise temperature control to avoid overheating
- Holding time: Allow sufficient time for complete and uniform austenitization
- Atmosphere control: Use protective atmospheres to prevent decarburization or oxidation
Proper austenitizing ensures a homogeneous structure that is less prone to cracking during subsequent cooling.
Post-Quench Handling and Tempering
After quenching, the 42CrMo4 shaft is in its most vulnerable state. To avoid cracking:
- Minimize delay: Transfer the quenched part to the tempering furnace as quickly as possible
- Gentle handling: Avoid mechanical shocks or stresses on the quenched part
- Uniform tempering: Ensure even heating during tempering to relieve residual stresses
Proper post-quench handling and tempering are crucial for achieving the desired mechanical properties without introducing cracks or other defects.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of shaft forging?
Shaft forging provides several significant advantages that make it a preferred manufacturing method for many high-performance applications. One of the primary benefits is the alignment of the grain flow, which enhances the mechanical properties of the forged shaft. This grain flow structure contributes to improved strength, making forged shafts ideal for high-stress environments where durability and resistance to fatigue are crucial. Additionally, forging typically leads to better strength-to-weight ratios compared to casting or machining from solid stock, ensuring that the shaft is both lightweight and robust. Another advantage is the reduction of material waste, which is more efficient than traditional machining processes. Finally, shaft forging allows the creation of complex shapes with superior structural integrity, which is particularly important in applications that demand intricate geometries while maintaining strength and durability.
How does material selection impact shaft forging quality?
The quality of shaft forging is highly influenced by material selection. The chosen material must meet the specific demands of the application, including load-bearing capacity, wear resistance, and toughness. Materials like 42CrMo4 are often selected for their exceptional balance of strength, toughness, and hardenability, making them ideal for shaft forging in high-stress scenarios. This material responds well to heat treatment processes, allowing for optimal hardness and performance. Additionally, the forgeability of the material is crucial to ensure ease of shaping during the forging process. Cost-effectiveness and material availability are also key factors in making the right choice for the intended application, as they directly affect production efficiency and budget. With 42CrMo4, manufacturers can achieve high-quality shafts with excellent mechanical properties, ensuring reliability and longevity in demanding industrial applications.
What are common quality control measures for forged shafts?
Quality control for forged shafts typically involves:

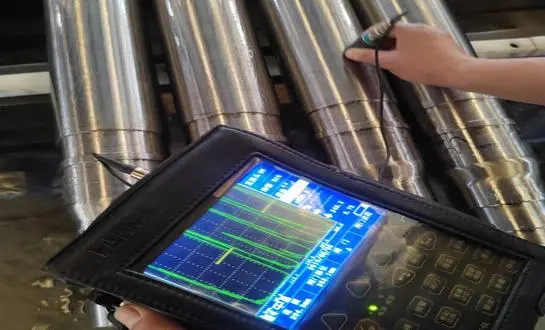

- Non-destructive testing (NDT) such as ultrasonic and magnetic particle inspection
- Dimensional checks to ensure compliance with specifications
- Mechanical testing (tensile, impact, hardness) to verify material properties
- Metallographic examination to assess microstructure
- Surface finish inspection
In conclusion, optimizing heat treatment for 42CrMo4 shaft forging is a complex process that requires careful consideration of multiple factors. By understanding the nuances of tempering temperatures, quenching techniques, and crack prevention strategies, manufacturers can produce high-quality, durable shafts that meet the demanding requirements of various industries. Founded in 2001, China Welong is a professional international integrated supply chain service provider. Strict quality control enables us to win good name with endurable products. For more information on custom shaft forging solutions and expert heat treatment services, please contact us at oiltools15@welongpost.com.
