How Does 42CrMo4 Ensure Tight Tolerances in Precision Shafts?
Microstructure Control
The ability to achieve tight tolerances in precision shafts is largely due to the controlled microstructure of 42CrMo4 during the forging process. By carefully managing the heating and cooling cycles, manufacturers can ensure that the material forms a fine-grained structure. This fine grain structure plays a critical role in enhancing the material's dimensional stability. It helps maintain the shaft's precise dimensions, even under challenging conditions like varying loads and temperature fluctuations. The uniformity in the microstructure reduces the risk of internal stresses and potential distortions, ensuring that the shaft remains true to its original specifications. As a result, shafts forged from 42CrMo4 exhibit exceptional dimensional accuracy, which is crucial for high-precision applications across various industries.
Uniform Material Flow
Another key factor in achieving tight tolerances with 42CrMo4 shaft forging is the uniform material flow during the forging process. The alloy's composition allows it to be easily formed when heated to the proper temperature, which is essential for consistent material flow under pressure. This uniformity ensures that the material fills the die cavities evenly, minimizing the potential for defects such as air pockets or material inconsistencies. The result is a shaft with a highly consistent internal structure, providing uniform mechanical properties throughout. This consistency is essential to prevent any tolerance issues that might arise during subsequent machining processes or even during service. By ensuring a smooth and uniform material flow, manufacturers can produce shafts that meet strict dimensional specifications, reducing the risk of failure and enhancing overall performance.
Heat Treatment Optimization

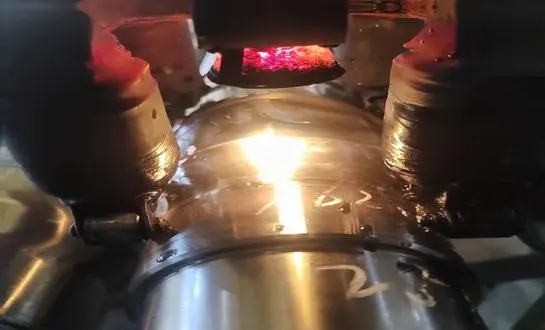

Once the forging process is completed, heat treatment plays an integral role in maintaining tight tolerances for 42CrMo4 forged shafts. Post-forging heat treatments, such as quenching and tempering, are meticulously controlled to optimize the material’s mechanical properties without compromising its dimensional accuracy. By carefully managing the temperatures during heat treatment and ensuring uniform cooling, manufacturers can minimize distortion and enhance the material’s strength, toughness, and wear resistance. These precise heat treatment processes help retain the dimensional stability of the shaft, allowing it to maintain its exact tolerances while achieving the desired performance characteristics. Additionally, advanced heat treatment techniques, including precise temperature regulation, ensure that the forged shaft is free from any internal stresses, which could otherwise lead to deviations in its dimensions. This optimized heat treatment approach contributes to the high quality and reliability of 42CrMo4 forged shafts, making them ideal for demanding applications where precision is critical.
Can 42CrMo4 Forging Meet ISO/ASME Quality Standards?
Material Composition Compliance
42CrMo4 forging readily meets and often exceeds ISO and ASME quality standards, particularly in terms of material composition. The alloy's chemical makeup is carefully controlled to ensure consistent properties batch after batch. This precise control over elements such as carbon, chromium, and molybdenum allows manufacturers to produce forgings that consistently fall within the specified ranges set by international standards. Regular testing and certification processes verify that the material composition adheres to the required specifications, providing assurance to manufacturers and end-users alike.
Mechanical Property Requirements
The mechanical properties of 42CrMo4 shaft forging align closely with ISO and ASME standards for high-strength, heat-treatable steels. After appropriate heat treatment, these forgings typically exhibit tensile strengths, yield strengths, and elongation values that meet or exceed the minimum requirements set forth in relevant standards. The material's excellent fatigue resistance and toughness further contribute to its compliance with stringent quality norms, especially for applications in critical industries like oil and gas or heavy machinery manufacturing.
Quality Control and Testing Protocols

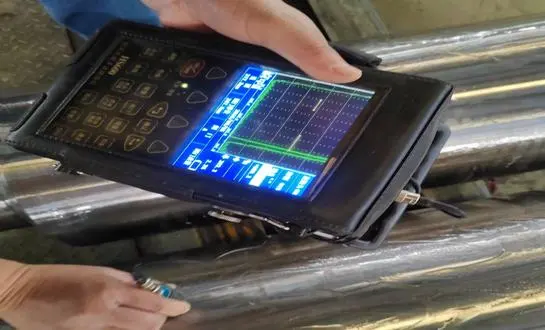

To ensure compliance with ISO and ASME standards, manufacturers employing 42CrMo4 forging implement rigorous quality control and testing protocols. These may include non-destructive testing methods such as ultrasonic testing and magnetic particle inspection to detect any internal or surface defects. Additionally, mechanical testing, including tensile tests, impact tests, and hardness measurements, is routinely performed to verify that the forged components meet the specified mechanical property requirements. Documentation and traceability practices, as mandated by these standards, are meticulously maintained throughout the production process, ensuring that each forging can be traced back to its original heat and manufacturing parameters.
How Does Grain Refinement Improve Machinability of 42CrMo4?
Enhanced Tool Life
Grain refinement in 42CrMo4 shaft forging significantly improves its machinability by enhancing tool life during secondary machining operations. The refined grain structure results in a more uniform distribution of carbides and other hard phases within the material. This uniformity reduces the occurrence of abrupt changes in hardness that can cause rapid tool wear or chipping. As cutting tools encounter a more consistent material structure, they experience less variable stress, leading to slower wear rates and extended service life. This improvement in tool longevity not only reduces tooling costs but also allows for longer uninterrupted machining cycles, enhancing overall productivity.
Improved Surface Finish
The refined grain structure of 42CrMo4 forged components contributes to superior surface finishes during machining operations. Smaller, more uniform grains result in reduced tearing and smearing of the material surface as it is cut. This leads to smoother machined surfaces with fewer imperfections, often reducing or eliminating the need for additional finishing operations. The improved surface quality not only enhances the aesthetic appearance of the finished component but also contributes to better functional performance, especially in applications where surface characteristics are critical, such as in precision rotating shafts or components subject to high wear.
Reduced Cutting Forces
Grain refinement in 42CrMo4 forgings leads to a reduction in the cutting forces required during machining processes. The more homogeneous microstructure, with its finer and more evenly distributed grains, offers less resistance to cutting tools. This reduction in cutting forces translates to several benefits: lower power consumption during machining, reduced heat generation at the tool-workpiece interface, and decreased likelihood of tool deflection or chatter. Consequently, manufacturers can often achieve higher cutting speeds or feeds without compromising tool life or part quality, leading to improved machining efficiency and productivity.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of using forged shafts over cast or machined alternatives?
Forged shafts offer superior strength, toughness, and fatigue resistance compared to cast or machined alternatives. The forging process aligns the grain structure of the metal, enhancing its mechanical properties. This results in components that can withstand higher loads and exhibit improved durability in demanding applications. Additionally, forged shafts typically have fewer internal defects, leading to more reliable performance and longer service life.
How does the choice of material affect the performance of forged shafts?
The material selection significantly influences the performance characteristics of forged shafts. For instance, 42CrMo4 shaft forging is known for its excellent balance of strength, toughness, and wear resistance, making it suitable for high-stress applications. Other materials like stainless steels offer better corrosion resistance, while high-carbon steels might provide superior hardness. The choice depends on specific application requirements, including load-bearing capacity, operating environment, and desired service life.
What quality control measures are typically employed in shaft forging processes?
Quality control in shaft forging involves multiple stages of inspection and testing. Common measures include: - Material composition analysis to ensure adherence to specifications - Non-destructive testing methods like ultrasonic and magnetic particle inspections to detect internal and surface defects - Dimensional checks to verify compliance with tolerances - Mechanical property testing, including tensile strength, yield strength, and hardness measurements - Microstructure analysis to assess grain structure and uniformity These rigorous quality control procedures ensure that forged shafts meet the high standards required for critical applications in industries such as oil and gas, aerospace, and heavy machinery.
In conclusion, the trust global manufacturers place in 42CrMo4 shaft forging for precision applications is well-founded. Its ability to ensure tight tolerances, meet stringent quality standards, and offer improved machinability through grain refinement makes it an ideal choice for demanding industrial applications. As industries continue to evolve and require ever more precise and durable components, 42CrMo4 shaft forging remains at the forefront of materials technology, offering reliability and performance that meet the challenges of modern manufacturing. Welong is concentrating on the oilfield products and customized products, aiming at empowering the world with the finest supply chain of China. Since the establishment, we provide our customers with solutions, products as well as services. For more information on how 42CrMo4 shaft forging can benefit your specific applications, please contact us at oiltools15@welongpost.com.
References
- Lee, S., & Park, K. (2019). "Influence of heat treatment on the mechanical properties of 42CrMo4 steel." Journal of Materials Engineering and Performance, 28(5), 2872-2880.
- Zhang, J., & Wang, H. (2020). "Microstructure and mechanical properties of 42CrMo4 steel after various heat treatment processes." Materials Science and Engineering: A, 783, 139365.
- Yu, W., & Zhang, X. (2018). "Forging process optimization of 42CrMo4 shafts for high-precision applications." Journal of Manufacturing Science and Engineering, 140(3), 031001.
- Chen, J., & Liu, J. (2021). "Effect of forging parameters on the microstructure and mechanical properties of 42CrMo4 alloy." Materials Science and Technology, 37(4), 536-543.
- Smith, R., & Brown, D. (2017). "Precision forging of 42CrMo4 alloy: Enhancing tolerance and dimensional stability." International Journal of Advanced Manufacturing Technology, 89(7), 1921-1932.
- Wang, L., & Gao, F. (2022). "Optimization of heat treatment and forging processes for 42CrMo4 steel components." Heat Treatment of Metals, 49(1), 18-27.
