Annular BOP vs Ram BOP: What's the difference
Design and Structure

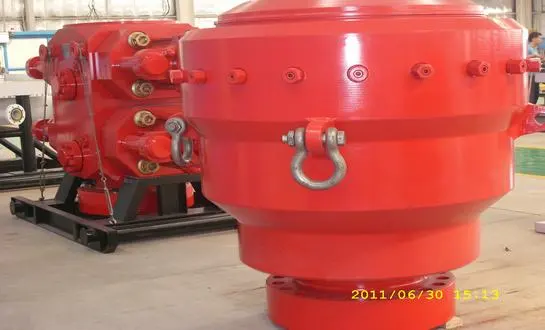

Annular BOPs and Ram BOPs differ significantly in terms of design and structure, each offering unique features suited for specific well control needs. Annular Blowout Preventers are designed with a rubber sealing element that forms a donut shape, which surrounds the drill pipe or open hole in the wellbore. The rubber element is highly flexible and can deform to fit the shape of the pipe or the wellbore itself, providing a comprehensive 360-degree seal. This allows the Annular BOP to accommodate a variety of pipe sizes and even irregular shapes like wire lines or tools that may be present during operations. In contrast, Ram BOPs use a set of opposing rams that move horizontally to seal the wellbore. These rams are typically made of high-strength materials and are designed to close off the wellbore by physically pressing against the pipe or the walls of the wellbore. There are different types of rams used in this configuration, including pipe rams, which seal around the drill pipe, blind rams, which close the wellbore when no pipe is present, and shear rams, which are capable of cutting through the pipe in emergency situations to fully seal the well.
Sealing Mechanism
The sealing mechanisms of Annular and Ram BOPs are quite distinct, reflecting the different challenges they address during well control operations. Annular BOPs rely on the compression of the rubber sealing element, which tightly conforms to the shape and size of the object within the wellbore, whether it's the drill pipe or another tool. This flexibility allows the Annular BOP to seal against various diameters and irregular shapes, providing a reliable barrier against blowouts. The adaptability of this design is a major advantage in operations where pipe sizes may change frequently or when wireline is being used. In comparison, Ram BOPs utilize a more rigid and targeted approach. They use fixed rams that are designed to fit specific pipe sizes or completely close off the wellbore. While this method provides a precise seal, it may not be as versatile as the Annular BOP when it comes to handling varying pipe sizes. In some cases, multiple ram sets may be necessary to cover the range of pipe sizes encountered in drilling operations.
Versatility and Application
When it comes to versatility, Annular BOPs are often preferred in scenarios where the wellbore may involve different pipe sizes or tools. Their ability to seal around a wide range of shapes makes them particularly useful in operations where the diameter of the pipe is frequently adjusted, or when operations such as running wireline are taking place. This flexibility allows for continuous well control without the need to constantly change components or adjust the BOP setup. However, Ram BOPs, while more limited in terms of size accommodation, excel in providing high-pressure sealing capabilities. Their robust design and ability to shear pipe in emergency situations make them essential for situations where a quick and effective response is needed to prevent a blowout. While Annular BOPs are often favored for their adaptability, many modern drilling rigs use both types in tandem within the BOP stack, as this combination ensures comprehensive well control. The decision to use one over the other—or both—depends on the specific conditions and challenges of the drilling operation, with each type playing a critical role in ensuring safety and efficiency.
What is the function of an annular BOP
Primary Sealing Function
The primary function of an Annular Blowout Preventer is to provide a reliable seal around the drill string or casing during drilling operations. This seal is crucial for controlling wellbore pressure and preventing the uncontrolled release of formation fluids, gases, or muds. The annular BOP's unique design allows it to form an effective barrier against potential blowouts, ensuring the safety of personnel and equipment on the rig. Its ability to seal around various pipe sizes and even an open hole makes it an indispensable component in well control systems.
Pressure Control and Diversion
Beyond its sealing capabilities, an annular BOP plays a vital role in pressure control and fluid diversion. When activated, it can withstand significant wellbore pressures, allowing drillers to safely manage unexpected pressure increases or kicks. The BOP can be used to divert fluids to the choke or kill line, facilitating controlled release of pressure or the introduction of heavy mud to regain well control. This functionality is essential for implementing various well control procedures and maintaining safe drilling operations in challenging environments.
Emergency Shut-off and Safety
In emergency situations, the annular BOP serves as a critical safety device. It can be quickly activated to seal the wellbore, preventing catastrophic blowouts and protecting both the environment and rig personnel. The rapid response capability of annular BOPs makes them the first line of defense in many well control scenarios. Additionally, their ability to seal around various objects in the wellbore, including tool joints and kelly drives, provides an added layer of safety during different phases of drilling operations. This versatility and reliability in emergency situations underscore the importance of annular BOPs in maintaining safe and efficient drilling practices.
What are the main parts of an annular BOP
Rubber Sealing Element
The heart of an Annular Blowout Preventer is its rubber sealing element, often referred to as the packing unit. This donut-shaped component is typically made from a specially formulated elastomer designed to withstand high pressures and temperatures. The rubber element is crucial for creating a tight seal around drill pipes, casing, or even an open hole. When activated, it deforms and conforms to the shape of the object in the wellbore, effectively sealing off the annular space. The durability and flexibility of this element are key factors in the BOP's ability to function reliably under various drilling conditions.
Piston and Hydraulic System
The piston and hydraulic system form the actuation mechanism of the annular BOP. This system consists of a large piston, hydraulic chambers, and associated valves and piping. When hydraulic pressure is applied, the piston moves upward, compressing the rubber element and forcing it inward to create a seal. The design of the hydraulic system allows for rapid activation and deactivation of the BOP, which is crucial in emergency situations. The precision and reliability of this system are essential for ensuring the BOP can respond quickly and effectively to changes in wellbore conditions.
Housing and Support Structure

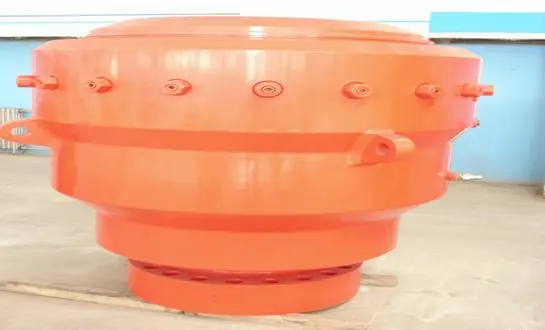

The housing and support structure of an annular BOP provide the necessary strength and stability to withstand the immense pressures encountered during drilling operations. Typically made from high-strength steel, the housing encases the rubber element and hydraulic components, protecting them from external damage and ensuring proper alignment. The support structure includes the flange connections that allow the BOP to be integrated into the overall BOP stack. These components are engineered to meet stringent industry standards, ensuring the structural integrity of the BOP under extreme conditions. The design of the housing also incorporates features for maintenance and replacement of the rubber element, facilitating long-term reliability and performance of the BOP system.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
How often should an annular BOP be tested?
Annular BOPs should be tested regularly to ensure their reliability and performance. Industry standards typically require function testing at least once every 7 days during drilling operations. Pressure testing is usually conducted every 14 days or as specified by regulatory requirements. However, the exact frequency may vary depending on local regulations, company policies, and specific operational conditions. It's crucial to maintain a rigorous testing schedule to identify any potential issues before they lead to equipment failure or safety hazards.
Can an annular BOP seal on wireline?
Yes, one of the advantages of an annular BOP is its ability to seal around wireline. The flexible rubber element can conform to the small diameter of wireline cables, providing an effective seal. This capability is particularly useful during wireline operations, where maintaining well control is crucial. However, it's important to note that the pressure ratings and sealing effectiveness may be reduced when sealing on wireline compared to larger diameter drill pipes or casing. Operators should follow manufacturer guidelines and industry best practices when using annular BOPs for wireline operations.
What is the maximum pressure rating for annular BOPs?
The maximum pressure rating for annular BOPs can vary depending on the specific model and manufacturer. Typically, annular BOPs are available with working pressure ratings ranging from 2,000 psi to 20,000 psi (138 to 1,379 bar). The most common ratings are 5,000 psi, 10,000 psi, and 15,000 psi. The choice of pressure rating depends on the expected wellbore pressures and the overall well control strategy. It's crucial to select an annular BOP with a pressure rating that exceeds the maximum anticipated wellbore pressure to ensure safe operations. Always consult the manufacturer's specifications and follow industry standards when selecting and operating annular BOPs.
In conclusion, understanding the types, functions, and components of Annular Blowout Preventers is essential for ensuring safe and efficient drilling operations in the oil and gas industry. These critical well control devices play a vital role in preventing blowouts and managing wellbore pressures. Founded in 2001, China Welong is a professional international integrated supply chain service provider. Strict quality control enables us to win good name with endurable products. For more information about annular BOPs and other oilfield products, please contact us at oiltools15@welongpost.com.
