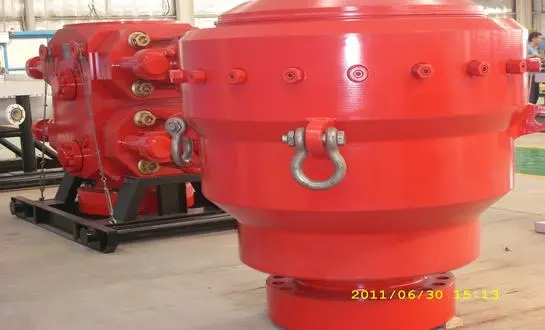

Annular Blowout Preventer Explained
Components of an Annular BOP
The Annular Blowout Preventer is made up of several critical components that work together to ensure effective well control in drilling operations. These components are designed to withstand extreme conditions and offer versatility when sealing off the wellbore.
- Housing: The housing is the outer structure of the BOP, which houses and protects the internal components. It is built from durable materials to withstand the high pressures and harsh environments encountered during drilling operations.
- Piston: The piston is a hydraulically-operated element that is responsible for applying force to the sealing element. When hydraulic pressure is introduced, the piston moves upward to compress the elastomeric sealing element, effectively sealing the wellbore.
- Elastomeric Sealing Element: This is the flexible, donut-shaped component that forms the primary sealing mechanism. Made from high-quality elastomers, it can deform and conform to the shape of the drill pipe or open hole, ensuring a tight seal that prevents the uncontrolled flow of fluids or gases.
- Operating System: The operating system consists of hydraulic controls that regulate the movement of the piston and sealing element. This system allows the driller to activate the BOP with precision, ensuring that it responds quickly to any pressure changes in the wellbore.
- Wellhead Connection: The wellhead connection is the interface that attaches the BOP to the wellhead, providing a secure link to the wellbore. This connection is critical for ensuring that the BOP remains in place during operation and can effectively control any wellbore pressures.
Operating Principles
The operation of an Annular BOP relies on hydraulic pressure to activate the sealing mechanism. When activated, hydraulic fluid is pumped into the piston chamber, forcing the piston upward. This upward movement compresses the elastomeric sealing element, causing it to deform and close around the drill pipe or open hole. The unique design allows the sealing element to conform to various shapes and sizes, providing a versatile solution for well control.
Advantages of Annular BOPs
Annular preventers offer several advantages in well control operations:
- Versatility: Can seal around a wide range of pipe sizes and even an open hole
- Quick Response: Rapidly activates to control sudden pressure changes
- Minimal Wear: The elastomeric element experiences less wear compared to metal-on-metal seals
- Stripping Capability: Allows for controlled movement of pipe through the sealed BOP
How Do Annular BOPs and Power Tongs Work Together
Synergy in Well Control Operations
Annular Blowout Preventers and power tongs are two essential tools that work in tandem during drilling operations to ensure the safety and integrity of the well. While the primary function of an annular BOP is to seal the wellbore and prevent uncontrolled pressure releases (blowouts), power tongs are hydraulically operated tools designed to make or break connections between drill pipe sections. These tools complement each other, with the annular BOP maintaining well control by sealing off the wellbore, and power tongs managing the drill string to make necessary adjustments, ensuring smooth operations during critical phases.
Coordinated Usage During Drilling
Throughout drilling, situations can arise where the annular BOP needs to be closed in response to fluctuating well pressures or when dealing with kick conditions (influx of gas or fluids into the wellbore). While the BOP is securing the wellbore, the power tongs can still be used to manipulate the drill string, allowing for efficient pipe make-up or break-out operations. This is particularly important when performing operations such as tripping in or out of the hole, or adjusting the drill string’s position. The ability to control the drill string without compromising wellbore sealing helps maintain the integrity of the well while ensuring drilling progress continues smoothly. This coordination is essential for drillers to manage pressure changes while keeping the operation efficient and safe.
Safety Considerations
The combined operation of annular BOPs and power tongs requires precise coordination and strict adherence to safety protocols. Operators must ensure that the movement of the drill pipe with the power tongs does not jeopardize the annular BOP’s sealing effectiveness. If the pipe movement is not carefully managed, it could risk compromising the wellbore seal, potentially leading to dangerous pressure releases. Operators need to maintain a delicate balance, ensuring that the power tongs’ actions do not interfere with the BOP's function. In doing so, they can effectively manage the well’s pressure while still allowing necessary drilling adjustments, providing a safe and controlled environment for drilling operations. Proper training and communication among the crew are crucial to prevent any mishaps, ensuring that both tools work harmoniously to uphold the safety and integrity of the wellbore.
Why Are Power Tongs Critical During BOP Activation
Maintaining Well Control
Power tongs play a crucial role in well control, particularly when an Annular Blowout Preventer (BOP) is activated. During potential well control issues, such as a kick, the annular BOP is deployed to seal the wellbore and prevent uncontrolled pressure release. In such scenarios, power tongs provide the necessary means for the precise manipulation of the drill string, which is essential to maintaining well control. This includes several important functions:
- Adjusting Pipe Position to Optimize Sealing: As the BOP is activated, it’s vital to adjust the position of the drill pipe to ensure the wellbore remains securely sealed. Power tongs allow drillers to precisely adjust the drill string, ensuring optimal alignment for a proper seal, which is crucial for maintaining well integrity during high-pressure situations.
- Enabling Circulation While the BOP is Closed: The ability to continue circulating fluids while the BOP is closed is a key function of power tongs. This circulation is necessary to control pressure and maintain well stability. Power tongs help make the necessary adjustments to the drill string, allowing for continuous circulation even in the most challenging conditions.
- Facilitating the Implementation of Well Control Procedures: Power tongs are also essential in the execution of well control procedures, such as well kill operations, where the well is carefully controlled to prevent a blowout. The controlled movement of the drill string is critical for implementing these procedures effectively without compromising the safety or integrity of the well.
Enhancing Safety Measures
The use of power tongs during BOP activation significantly enhances the safety of operations on the rig. By enabling the precise and controlled movement of the drill string, power tongs help reduce the risk of damaging the BOP seal. This is particularly critical during well control operations, where any disruption to the seal can lead to catastrophic consequences. Controlled manipulation of the drill string ensures that the BOP seal remains intact while still allowing for necessary adjustments, such as shifting the drill pipe to optimize pressure control or circulation.
Efficiency in Emergency Situations
In emergency situations where time is of the essence, the combination of annular BOPs and power tongs is indispensable. The ability to quickly and efficiently adjust the drill string position while maintaining a secure seal on the wellbore can determine whether a potential blowout is contained or allowed to escalate into a full-scale disaster. Power tongs, by enabling rapid manipulation of the drill string without compromising the wellbore seal, ensure that drillers can respond promptly to pressure changes and other hazards, ultimately enhancing overall well control and preventing catastrophic failures. The coordination of these tools is a vital component in maintaining safety and operational efficiency under high-pressure circumstances.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
What is the pressure rating of a typical Annular BOP?
Annular BOPs are typically rated for pressures ranging from 5,000 to 15,000 psi, depending on the specific model and application. Some high-pressure models can withstand even higher pressures, up to 20,000 psi or more.
How often should an Annular BOP be tested?
Industry standards and regulations often require annular BOPs to be tested at least once every 14 days during drilling operations. However, more frequent testing may be necessary based on specific well conditions or company policies.
Can an Annular BOP seal on wireline?
Yes, annular BOPs can seal around wireline. Their flexible sealing element allows them to conform to various shapes and sizes, including thin wireline cables used in well logging and intervention operations.
Understanding the critical role of Annular Blowout Preventers in well control operations is essential for maintaining safety and efficiency in oil and gas drilling. These versatile devices, working in conjunction with other equipment like power tongs, form the backbone of well control systems. Founded in 2001, China Welong is a professional international integrated supply chain service provider. Strict quality control enables us to win good name with endurable products. For more information on annular BOPs and other oilfield products, please contact us at oiltools15@welongpost.com.
