What is the difference between a ram preventer and an Annular Blowout Preventer?

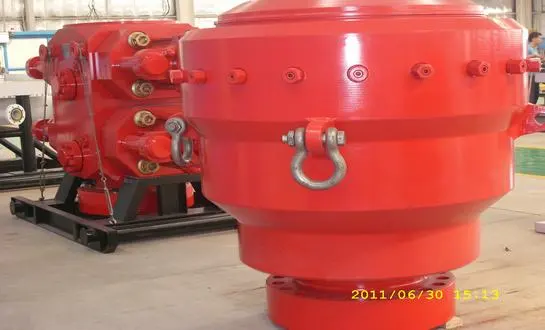

Key Design Features: Annular BOP vs. Ram Preventer

Sealing Mechanism

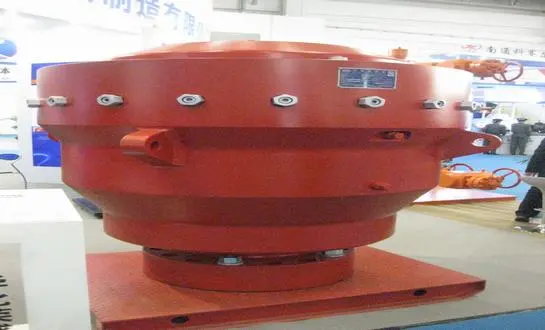

The Annular Blowout Preventer uses a unique elastomeric sealing element that is highly versatile and adaptable to different shapes and sizes. This rubber packing unit can conform to various diameters, sealing around drill pipes, tool joints, and even irregular shapes encountered in the wellbore. Hydraulic pressure compresses the elastomeric element inward, enabling it to create a reliable seal that prevents the uncontrolled flow of formation fluids. In contrast, Ram preventers utilize steel blocks or rams that move horizontally to close off the wellbore. These rams are designed to fit specific pipe sizes or to seal off an open hole entirely. While ram preventers offer a more rigid seal, they have less flexibility compared to annular BOPs because they are built for specific configurations. However, they are capable of generating greater sealing forces due to the solid nature of the steel rams, which can be critical in certain high-pressure scenarios.

Operational Flexibility

Annular BOPs are known for their superior operational flexibility. They can seal around a wide range of pipe sizes without requiring a change in components, making them especially useful during drilling operations where different sizes of drill pipe or casing are often used. This adaptability allows the annular BOP to function continuously throughout the drilling process, reducing the need for frequent adjustments. On the other hand, ram preventers require different ram types for various pipe sizes or specific operational situations. This requirement necessitates more frequent changes of the rams during the drilling process, which can lead to increased downtime and additional operational complexity.

Pressure Ratings

Both annular BOPs and ram preventers are engineered to withstand high pressures, but ram preventers generally have higher pressure ratings. Due to their robust steel construction, ram preventers are well-suited for extreme high-pressure scenarios where maximum sealing capability is needed to prevent blowouts. While annular BOPs are also designed to handle significant pressure, they are typically used as the first line of defense in a blowout preventer stack, with ram preventers providing added protection when higher pressure containment is required. Thus, while annular BOPs serve an essential role in maintaining well control, ram preventers are often relied upon for their higher sealing force in critical situations.

Advantages of Annular BOPs Over Ram Preventers in Well Control

Versatility in Sealing

One of the key advantages of an Annular Blowout Preventer (BOP) is its remarkable ability to seal around a wide variety of pipe sizes and even wireline tools without requiring the replacement or adjustment of components. This feature provides considerable operational flexibility, especially during drilling operations where the pipe size can change frequently or when running wireline tools. In these dynamic situations, the annular BOP can quickly adapt to seal effectively, ensuring continuous well control without disrupting operations for component changes. This level of versatility is crucial in maintaining a smooth workflow and reducing delays, helping drilling teams keep operations on track while managing various well conditions.

Rapid Response Time

Annular BOPs are known for their fast closing times, which is another advantage they hold over ram preventers. The rapid response time is vital during well control situations, where quick action can make the difference between preventing a minor influx of formation fluids and avoiding a catastrophic blowout. By quickly sealing off the wellbore, annular BOPs help contain the situation before it escalates, ensuring that any potential well control issues are addressed promptly. This quick reaction is especially important in high-pressure environments, where every second counts in maintaining well safety and protecting personnel and equipment.

Lower Maintenance Requirements

The simpler design of annular BOPs, which features fewer moving parts compared to ram preventers, generally results in lower maintenance needs and extended service intervals. This reduced complexity means there is less potential for wear and tear, leading to fewer repairs and a longer operational life for the equipment. Additionally, the rubber sealing element used in annular BOPs is easier to replace than the steel rams of a ram preventer, making maintenance procedures quicker and less costly. The combination of lower maintenance requirements and longer service intervals translates into reduced downtime and operational costs, contributing to the overall efficiency of drilling operations.

When to Use Annular BOP vs. Ram Preventer in Drilling

Initial Well Control Response

Annular Blowout Preventers (BOPs) are commonly used as the first line of defense in well control situations, offering an immediate response to potential blowout scenarios. Their ability to quickly seal around a variety of pipe sizes, including drill pipe, casing, and even wireline, makes them an essential tool in preventing well control issues from escalating. In the typical configuration of a BOP stack, the annular BOP is positioned at the top, allowing it to be the first component activated when a well control event occurs. This quick closing mechanism is crucial when dealing with kicks or sudden pressure increases, helping to isolate the wellbore and maintain safety during the initial stages of a well control situation.

High-Pressure Scenarios

While annular BOPs are highly versatile, they are not always the preferred choice in high-pressure scenarios, where ram preventers are often more effective. Ram preventers are designed to handle higher pressure ratings and offer more robust sealing capabilities, making them ideal for managing extreme pressure conditions. In wells with known high formation pressures or in challenging environments like deepwater drilling, ram preventers play a critical role in ensuring the integrity of the well and safeguarding the drilling operation. Their ability to withstand higher pressures makes them the go-to solution for operations where pressure control is paramount.

Specific Pipe Sizes and Open Hole Situations

When dealing with specific pipe sizes or requiring a complete seal in open hole situations, ram preventers are typically preferred. Variable bore rams offer flexibility by accommodating a wide range of pipe sizes, while blind rams are designed to completely seal off an open wellbore. These capabilities are particularly useful when precise control over the well is needed, such as when sealing off the well in preparation for further drilling operations or well intervention activities. In these scenarios, ram preventers provide the most reliable and secure means of well control, offering flexibility and strength where it matters most.

Source: 老白的频道 Lao Bai

FAQ about Annular Blowout Preventers

What are the main types of ram preventers?

The main types of ram preventers include pipe rams (designed to seal around specific pipe sizes), variable bore rams (capable of sealing around a range of pipe sizes), blind rams (for sealing an open hole), and shear rams (capable of cutting through drill pipe and sealing the wellbore in emergency situations).

How often should Annular Blowout Preventers be maintained?

Maintenance intervals for Annular Blowout Preventers can vary depending on usage and operating conditions. Generally, they should undergo a thorough inspection and maintenance routine at least annually or after every 1,000 operating hours, whichever comes first. However, more frequent inspections may be necessary in harsh environments or high-usage scenarios.

Can an Annular Blowout Preventer completely seal an open hole?

While an Annular Blowout Preventer can provide a seal in an open hole situation, it is not typically designed for this purpose and may not provide as reliable a seal as a blind ram preventer. In critical well control situations requiring a complete seal of an open hole, a ram preventer with blind rams is generally the preferred option.

Understanding the differences between ram preventers and Annular Blowout Preventers is crucial for ensuring effective well control and safety in drilling operations. Each type of preventer has its unique advantages and applications, and the choice between them depends on specific operational requirements and well conditions. Established in 2001, China Welong is a seasoned global provider of integrated supply chain services. Strict quality control helps us build a solid reputation with durable products. For more information on well control equipment and customized solutions, please contact us at oiltools15@welongpost.com.
