What is the use of annular blowout preventer
Primary Sealing Mechanism

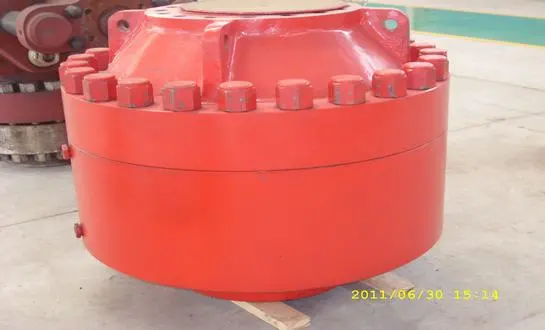

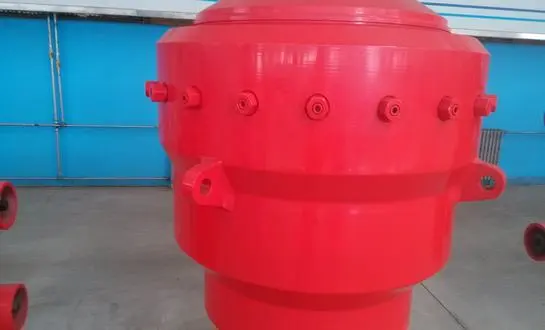

The Annular Blowout Preventer (ABOP) plays a critical role as the primary sealing mechanism within a blowout preventer stack. Its unique design is highly adaptable, allowing it to form a tight, secure seal around various types of objects encountered during drilling operations. This includes drill pipes of varying sizes, tool joints, and even wireline. The versatility of the ABOP makes it a vital component for maintaining well control, as it can accommodate different equipment used during drilling, while still providing the necessary pressure containment and protection. The ability of the ABOP to seal tightly around such objects ensures that no fluids or gases escape from the wellbore, preventing hazardous situations that could jeopardize the safety of the rig and personnel.
Pressure Containment
A key function of the Annular Blowout Preventer is its ability to contain wellbore pressure effectively. When activated, the ABOP can withstand significant pressure differentials between the wellbore and the surface, preventing the uncontrolled release of formation fluids. This pressure containment is essential for well control, especially in high-pressure wells where the risk of a blowout is elevated. The ABOP’s ability to isolate the wellbore from surface pressures helps mitigate the potential consequences of kicks, which occur when formation fluids enter the wellbore unexpectedly. By keeping pressure under control, the ABOP serves as a crucial safeguard in preventing blowouts, which can be catastrophic both for the well and for the safety of the drilling crew.
Emergency Shut-off
In emergency situations, the Annular Blowout Preventer can be rapidly activated to completely seal the wellbore, providing an emergency shut-off function. This quick response capability is critical in preventing a dangerous escalation of well control issues. When a sudden influx of formation fluids occurs or when other safety measures are not sufficient, the ABOP's ability to seal the wellbore completely buys time for operators to assess the situation and implement additional safety measures. This may involve initiating well kill procedures or using other blowout preventers to regain control of the well. The ABOP’s emergency shut-off feature provides a vital safety net, ensuring that well control can be maintained in the most critical moments.
What is the job description of a blowout preventer
Well Control Equipment
A blowout preventer (BOP), including the annular type, is an essential component of well control equipment in drilling operations. Its primary function is to prevent the uncontrolled flow of formation fluids from the wellbore to the surface. By providing a reliable barrier, the BOP ensures that high-pressure formation fluids are contained within the wellbore and do not escape into the surrounding environment. This is critical to prevent blowouts, which can lead to disastrous consequences, including damage to equipment, environmental contamination, and safety risks to personnel. The blowout preventer’s ability to act as a seal is vital for maintaining control of the well during the drilling process, especially when encountering unstable formations.
Pressure Management
One of the primary roles of the blowout preventer is managing wellbore pressure throughout drilling operations. It allows for the controlled release of pressure in a safe and measured manner, preventing excessive pressure buildup. This controlled pressure release is essential for managing different phases of drilling, such as when circulation is lost or when a pressure differential arises between the formation and the wellbore. The blowout preventer also ensures that if abnormal pressure conditions are detected, the well can be quickly sealed to prevent further escalation. This ability to rapidly respond to unexpected pressure changes is crucial for maintaining well control and minimizing risks during the drilling process.
Safety System
The blowout preventer is a critical safety system in the drilling process, offering protection to personnel, equipment, and the environment. It serves as the last line of defense in preventing catastrophic well control events. In the event of an unexpected influx of formation fluids, the BOP can be activated to seal the well, preventing blowouts or other hazardous incidents. This safety feature ensures that drilling operations can continue safely, even in challenging high-pressure formations. By maintaining well control, the blowout preventer minimizes the risk of major accidents, safeguarding not only the workers but also the surrounding environment from potential harm caused by uncontrolled fluid flow.
What is the main function of the annulus
Fluid Circulation
The annulus, which refers to the space between the drill string and the wellbore or casing, plays a crucial role in fluid circulation during the drilling process. Drilling mud is pumped down through the drill string, and as it circulates, it flows back to the surface through the annulus. This circulation is essential for a number of reasons: it helps to carry drill cuttings away from the wellbore, preventing them from accumulating and interfering with drilling operations. Additionally, the returning drilling mud maintains hydrostatic pressure on the formation, helping to prevent the influx of formation fluids into the wellbore. By continually circulating the fluid, the annulus also assists in cooling and lubricating the drill bit, enhancing the overall efficiency of the drilling operation.
Pressure Control
The annulus plays a critical role in maintaining pressure control within the wellbore. The pressure within the annular space is carefully monitored and controlled by adjusting the mud weight. By maintaining the proper mud weight in the annulus, the pressure exerted by the drilling fluid helps balance the formation pressures. This balance is vital to prevent the influx of formation fluids, which could lead to a kick or a blowout if uncontrolled. In case of any issues, such as a sudden increase in pressure, the Annular Blowout Preventer (BOP) can quickly seal the annular space to prevent any dangerous release of formation fluids.
Well Monitoring
The annulus is a vital area for monitoring well conditions throughout drilling operations. Changes in the pressure within the annular space can serve as an early warning system for potential well control issues, such as kicks (influx of formation fluids) or losses (when drilling fluid escapes into the formation). By continuously monitoring the pressure in the annulus, operators can detect these issues early, allowing them to take corrective action before they escalate into more serious problems, such as a blowout. This proactive monitoring is essential for ensuring the safety and integrity of the well, helping to avoid costly and dangerous incidents during the drilling process.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
How does an Annular Blowout Preventer work?
An Annular Blowout Preventer works by using hydraulic pressure to compress a large rubber sealing element. This element, shaped like a donut, constricts inward to seal around drill pipe, casing, or even an open hole. The flexible nature of the rubber allows it to conform to various shapes and sizes, effectively sealing the wellbore.
What are the advantages of an Annular Blowout Preventer?
The main advantages of an ABOP include its versatility in sealing around different sizes and shapes, its ability to strip pipe while maintaining a seal, and its relatively quick closing time. These features make it an essential component in well control systems, providing a reliable first line of defense against potential blowouts.
How often should an Annular Blowout Preventer be tested?
Testing frequency for ABOPs typically follows industry standards and regulatory requirements. Generally, they are tested at least once every 14 days during drilling operations. However, more frequent testing may be necessary based on well conditions, company policies, or local regulations. Regular testing ensures the preventer remains in optimal working condition to respond effectively in emergency situations.
In conclusion, the Annular Blowout Preventer plays a critical role in maintaining well control and ensuring safe drilling operations in the oil and gas industry. Its versatile sealing capability, combined with its ability to respond quickly to potential well control issues, makes it an indispensable component of modern drilling systems. China Welong is a seasoned global integrated supply chain service provider that was established in 2001. With durable products, we are able to establish a positive reputation through strict quality control. For more information about annular blowout preventers and other oilfield products, please contact us at oiltools15@welongpost.com.
