What is the purpose of a float shoe?

A float shoe is a crucial component in oil and gas drilling operations, playing a vital role in the cementing process of well construction. The primary purpose of a float shoe is to guide the casing string into the wellbore while preventing backflow of cement during placement. This essential tool is typically attached to the bottom of the casing string and features a check valve mechanism that allows fluid to flow downward but prevents upward movement. By facilitating smooth casing insertion and maintaining cement integrity, float shoes contribute significantly to well stability and long-term production efficiency. Their design incorporates features that aid in centralization, reduce drag, and minimize the risk of formation damage during installation. Understanding the multifaceted purpose of float shoes is key for drilling contractors and engineers seeking to optimize their well completion strategies and ensure the success of their cementing operations.

Design and Components of Float Shoes

Body Structure and Materials

The body of a float shoe is typically crafted from durable materials such as steel or aluminum, chosen for their strength and resistance to the harsh downhole environment. The structure is designed to withstand high pressures and temperatures encountered during drilling operations. Some float shoes incorporate a nose section made of drillable materials like phenolic resin or aluminum, allowing for easy removal if necessary during future well interventions.

Check Valve Mechanism

At the heart of the float shoe is its check valve system. This critical component usually consists of a ball and seat arrangement or a flapper valve. The valve allows fluids and cement slurry to flow downward during pumping operations but closes to prevent backflow when pumping stops. This mechanism is essential for maintaining the integrity of the cement job by preventing contamination and ensuring proper cement placement.

Nozzles and Jet Ports

Many float shoes feature carefully designed nozzles or jet ports. These openings serve multiple purposes, including:

Facilitating the flow of drilling fluids during casing running
Aiding in the even distribution of cement slurry
Assisting in the removal of mud cake from the wellbore wall
Enhancing the turbulent flow to improve cement bonding

The size and configuration of these nozzles are often customized based on specific well conditions and cementing requirements.

Operational Benefits of Using Float Shoes

Improved Casing Run-In

Float shoes significantly enhance the efficiency of casing installation. Their streamlined design reduces friction and drag as the casing string is lowered into the wellbore. This is particularly beneficial in deviated or horizontal wells where the risk of getting stuck is higher. The float shoe's ability to "float" the casing by allowing it to fill with drilling fluid reduces the effective weight of the string, making it easier to maneuver and position correctly.

Enhanced Cementing Process

During the cementing operation, float shoes play a crucial role in ensuring proper cement placement. They facilitate the displacement of drilling mud by cement slurry, helping to achieve a uniform cement sheath around the casing. The check valve mechanism prevents cement from flowing back into the casing, maintaining the desired cement height and reducing the risk of contamination. This is essential for creating an effective seal and zonal isolation, which are critical for well integrity and production optimization.

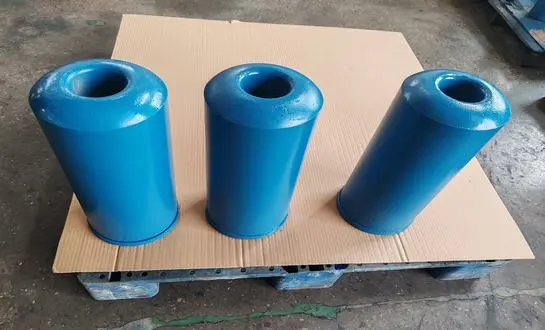

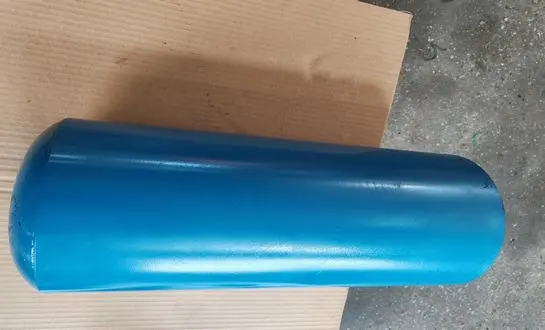

float shoe

Wellbore Cleaning and Conditioning

Many modern float shoe designs incorporate features that aid in wellbore cleaning and conditioning. As the casing is run in hole, the shoe can help remove debris and condition the wellbore wall. Some advanced models include rotating components or jetting systems that enhance this cleaning action, preparing the wellbore for better cement adhesion. This cleaning action contributes to improved cement bonding and reduces the likelihood of channeling, which can compromise zonal isolation.

Selecting the Right Float Shoe for Your Operation

Considerations for Well Conditions

Choosing the appropriate float shoe requires careful consideration of well conditions and operational requirements. Factors to consider include:

Well depth and trajectory
Formation characteristics
Expected pressure and temperature conditions
Casing size and weight
Cementing program specifications

Consulting with experienced engineers and manufacturers can help in selecting a float shoe that optimizes performance for specific well conditions.

Customization Options

Many manufacturers offer customization options for float shoes to meet specific operational needs. These may include:

Adjustable nozzle configurations for optimized flow characteristics
Special coatings or materials for enhanced durability in corrosive environments
Integration of measurement devices for real-time data during installation
Incorporation of centralizer features for improved casing centralization

Tailoring the float shoe design to the unique challenges of each well can significantly enhance overall performance and reliability.

Quality Assurance and Testing

Given the critical role of float shoes in well construction, rigorous quality assurance and testing procedures are essential. Reputable manufacturers subject their products to extensive testing, including:

Pressure testing of valve mechanisms
Flow performance evaluations
Material integrity assessments
Simulated downhole condition tests

Operators should review testing certifications and performance data when selecting float shoes to ensure they meet the required standards for their specific applications.

In conclusion, the purpose of a float shoe extends far beyond simply guiding the casing into the wellbore. These essential tools play a multifaceted role in ensuring successful well completion, from facilitating smooth casing runs to optimizing cement placement and enhancing overall well integrity. By carefully selecting and utilizing the right float shoe for each operation, drilling contractors and engineers can significantly improve the efficiency and reliability of their well construction processes. For more information on float shoes and other oilfield products, please contact us at oiltools15@welongpost.com.
